Special front light design, U2, the ultramini

The U2 is so small that it doesn’t stand out when attached to the bicycle and makes the design of the bicycle very simple.
This is the biggest benefit of the U2 design.

Features

Features

U2E

Dimensions : 34.7mm ×19mm ×28mm
Weight : 20.5gram
Color and finish : Polished silver / Matt black
Housing material : Aluminum 6061 T6
Bracket : Dual position bracket

U2D

Dimensions : 39mm ×19mm ×28mm
Weight : 22gram
Color and finish : Polished silver / Matt black
Housing material : Aluminum 6061 T6
Bracket : Dual position bracket

Light unit

Light unit

U2E

Light Module : LightSKIN V2 Lens
Power source : On-board battery of the e-bike
Brightness : 150 lm
Voltage : DC 6V (5V – 12V)
Power consumption : 1.3 W

U2D

Light Module : LightSKIN V2 Lens
Power source : AC 6V(3W) Bicycle Dynamo
Brightness : 150 lm
Voltage : AC 6V
Power consumption : 2.3 W

ETC

ETC

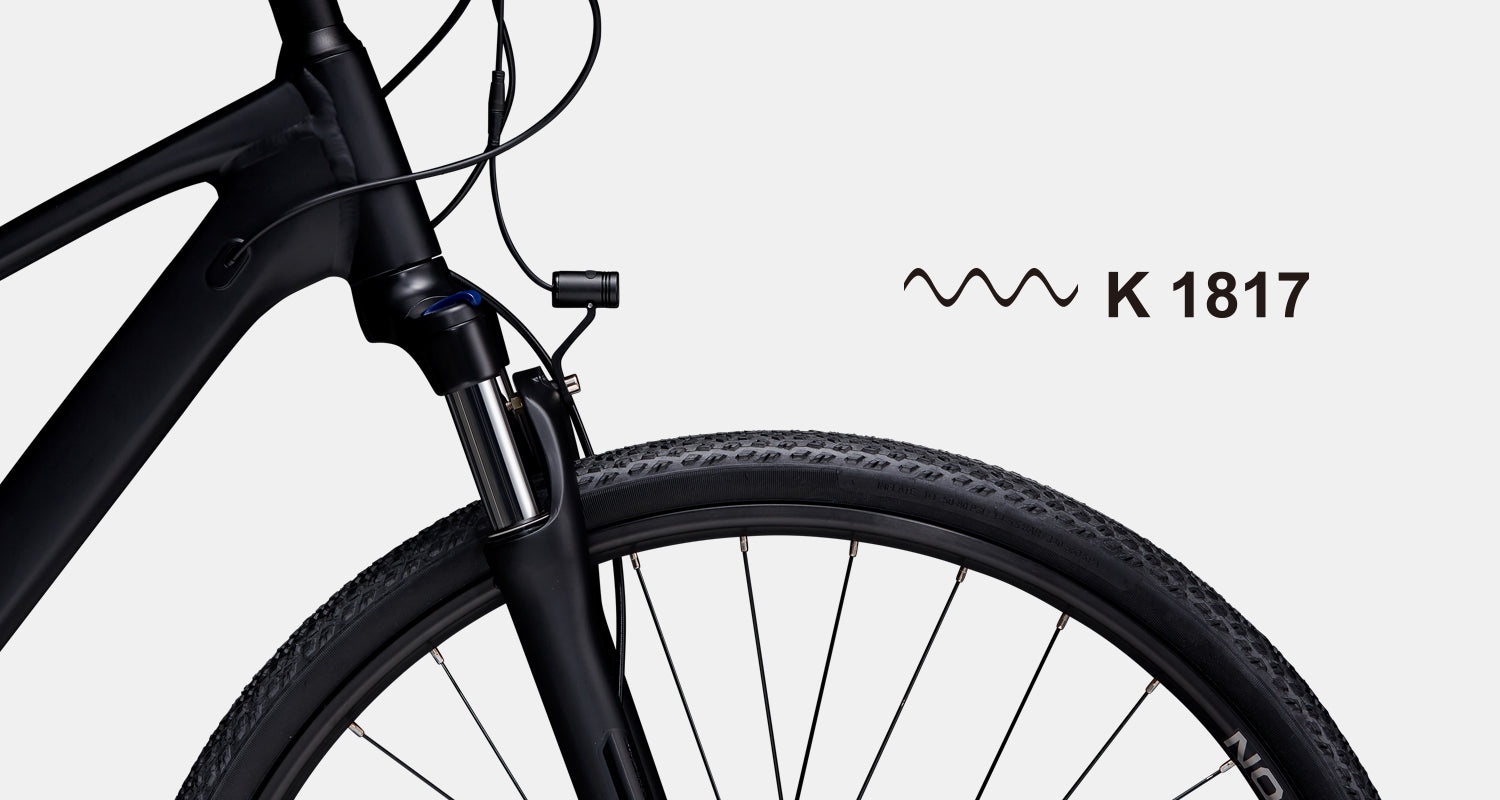

Approval Code : K 1817
Standard or directive : CE, RoHS
StVZO §22a TA Nr.23(Headlights for bicycles)
IPX5

ASSEMBLY

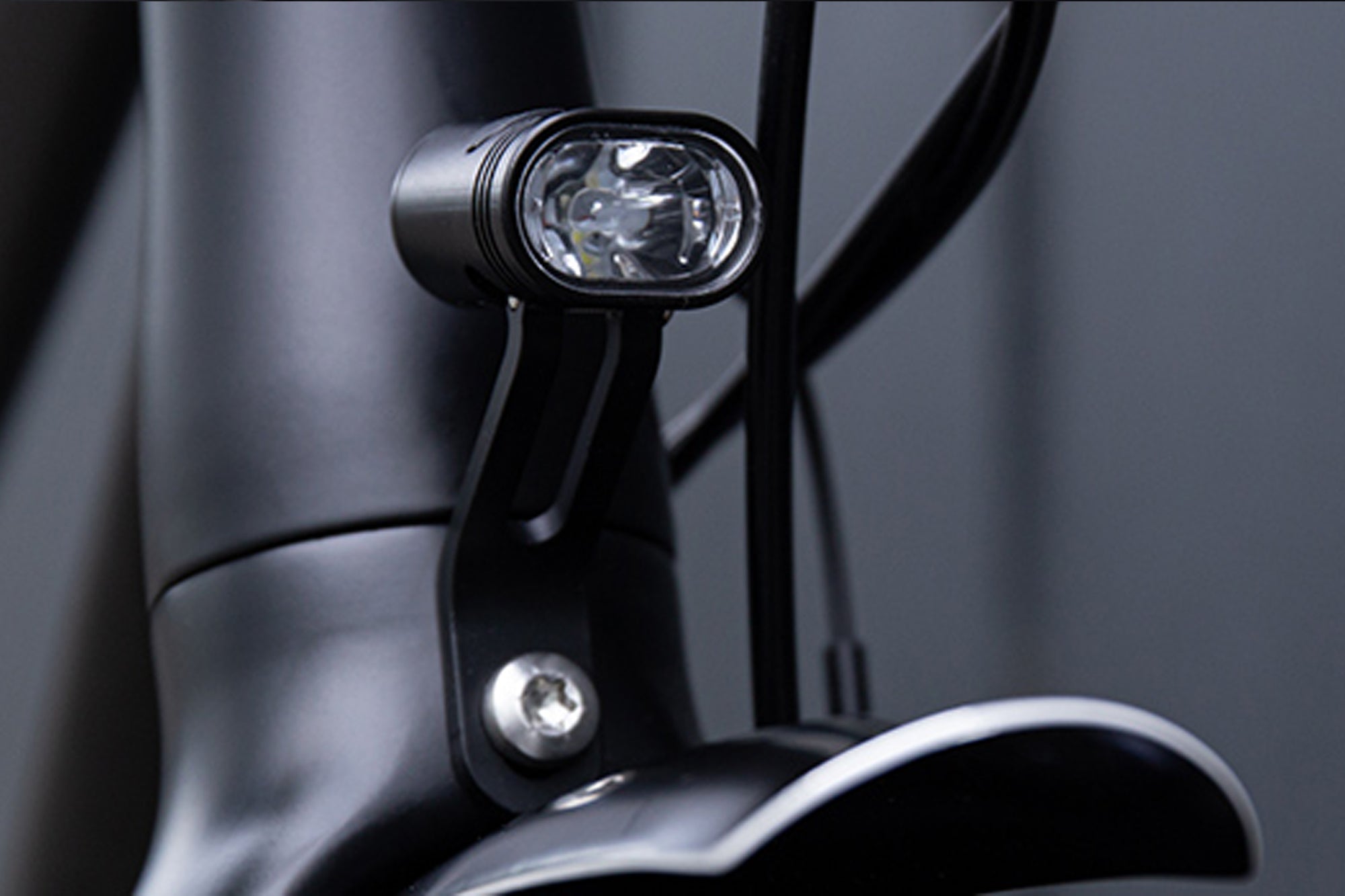

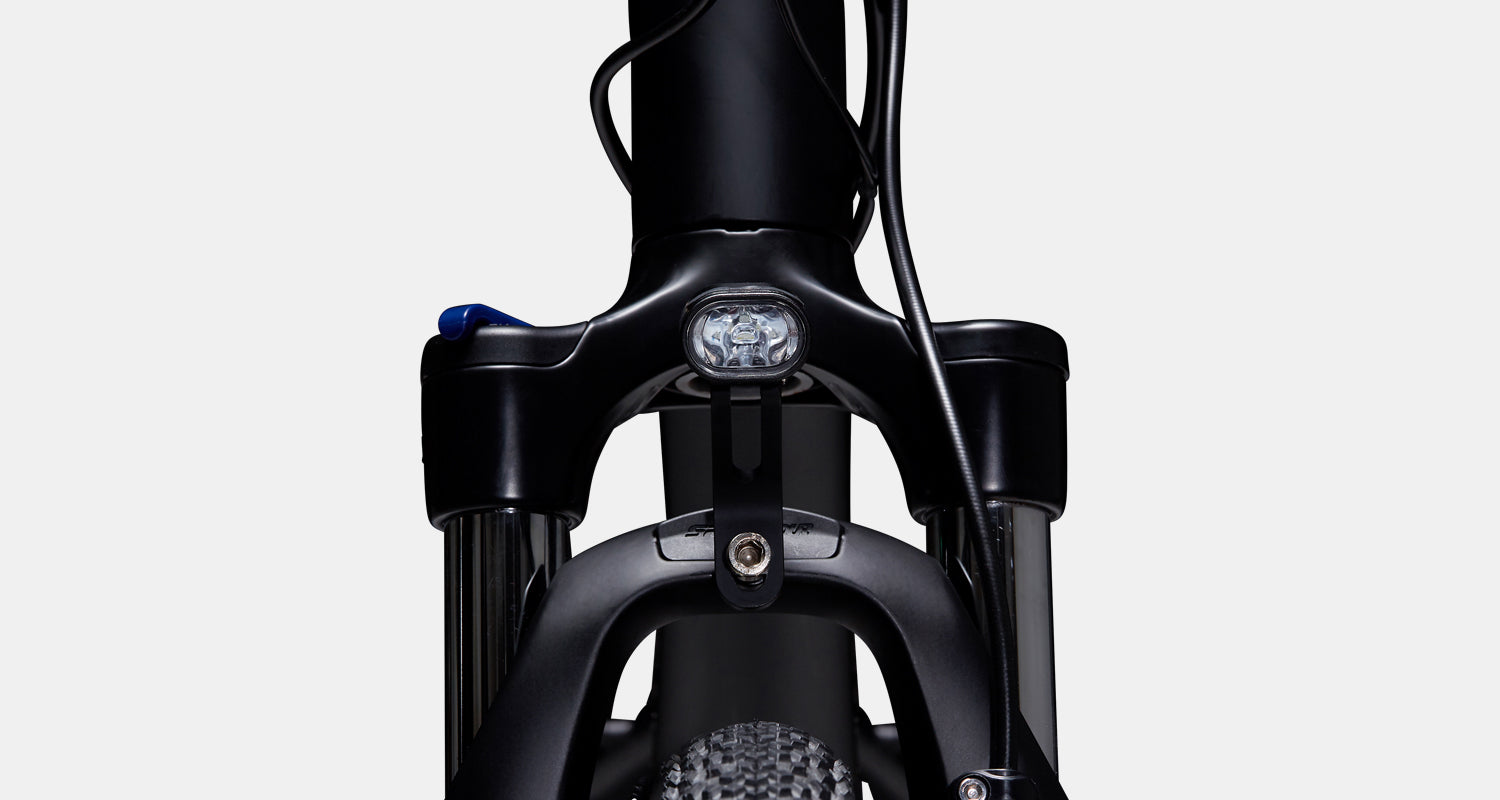

The headlight must be mounted centrally on the bike and must not, under any circumstances, be covered. The headlight must be mounted in such a way that it emits light to the front. The reference axis (see drawing) must be aligned parallel to the bicycle’s longitudinal axis. The housing is made of aluminum and has a plastic cover with a sealed cable outlet. Holders for the headlight can be attached both to the top or the bottom. The light angle is adjustable via the holder.

Connecting to the power source

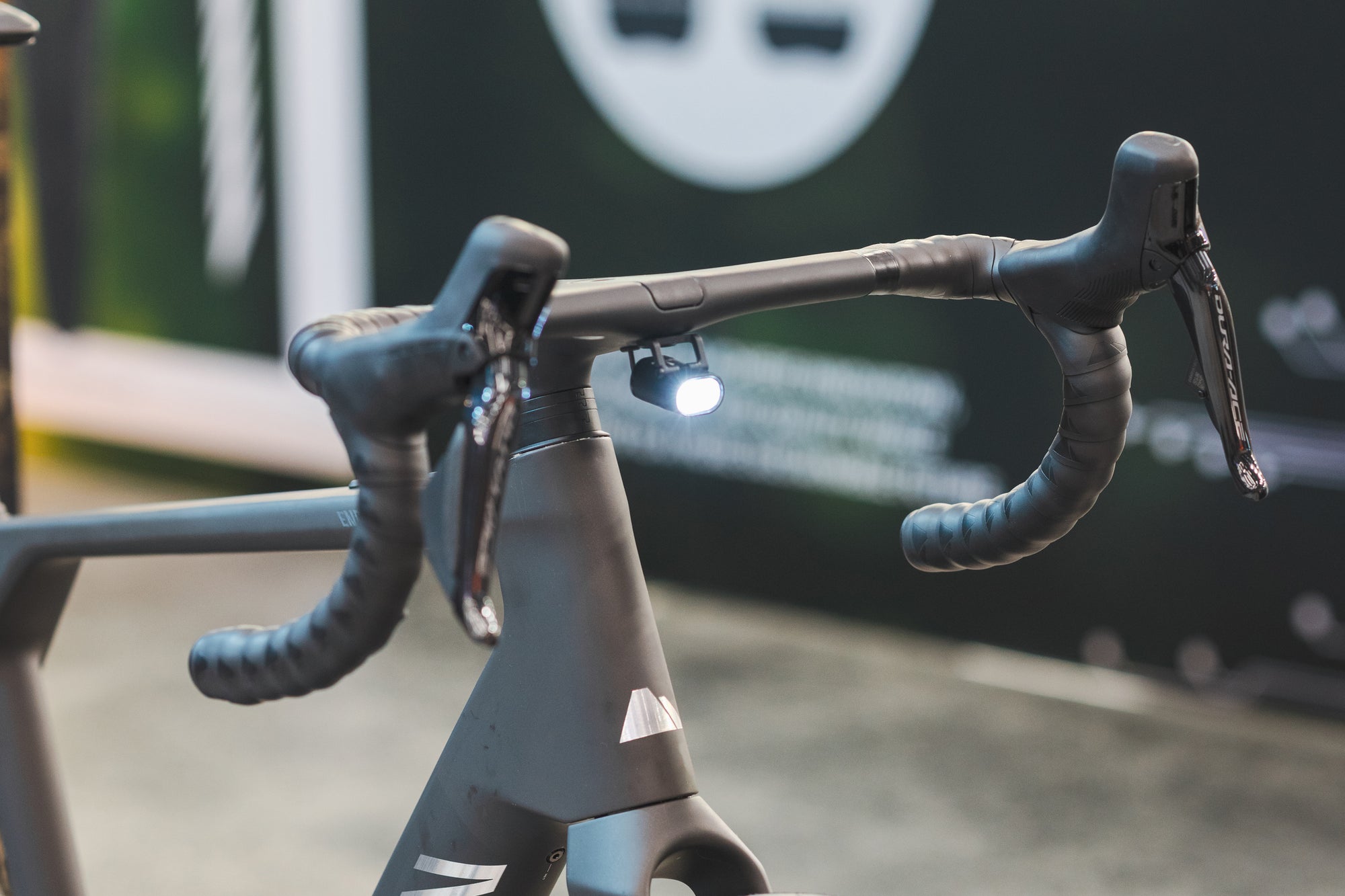

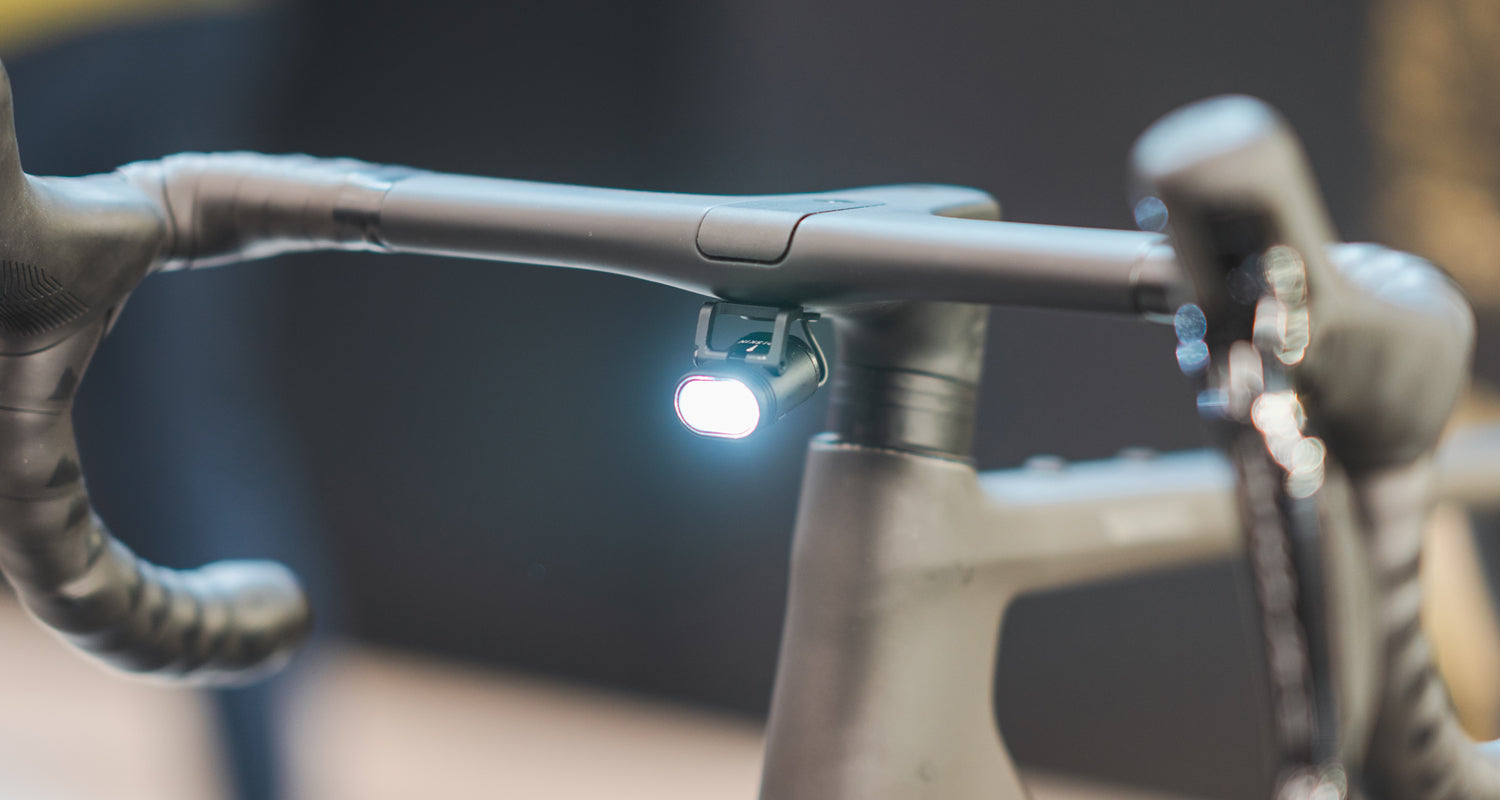

The connector of Ultramini light and the connector of power source should be compatible, which must be ascertained before the purchase of the product. The light weight 25grams is another advantage of U2. Many bicycle lights can be damaged by vibration or impact during riding, U2 weighs only 25 grams, minimizing the impact. Because of it’s light weight, we can also use very small brackets can be placed in various positions, like fender and stem.
