built-in light seatpost SF

LightSKIN has expertise in embedding lights into seatposts. This time, it introduces a completely new approach.

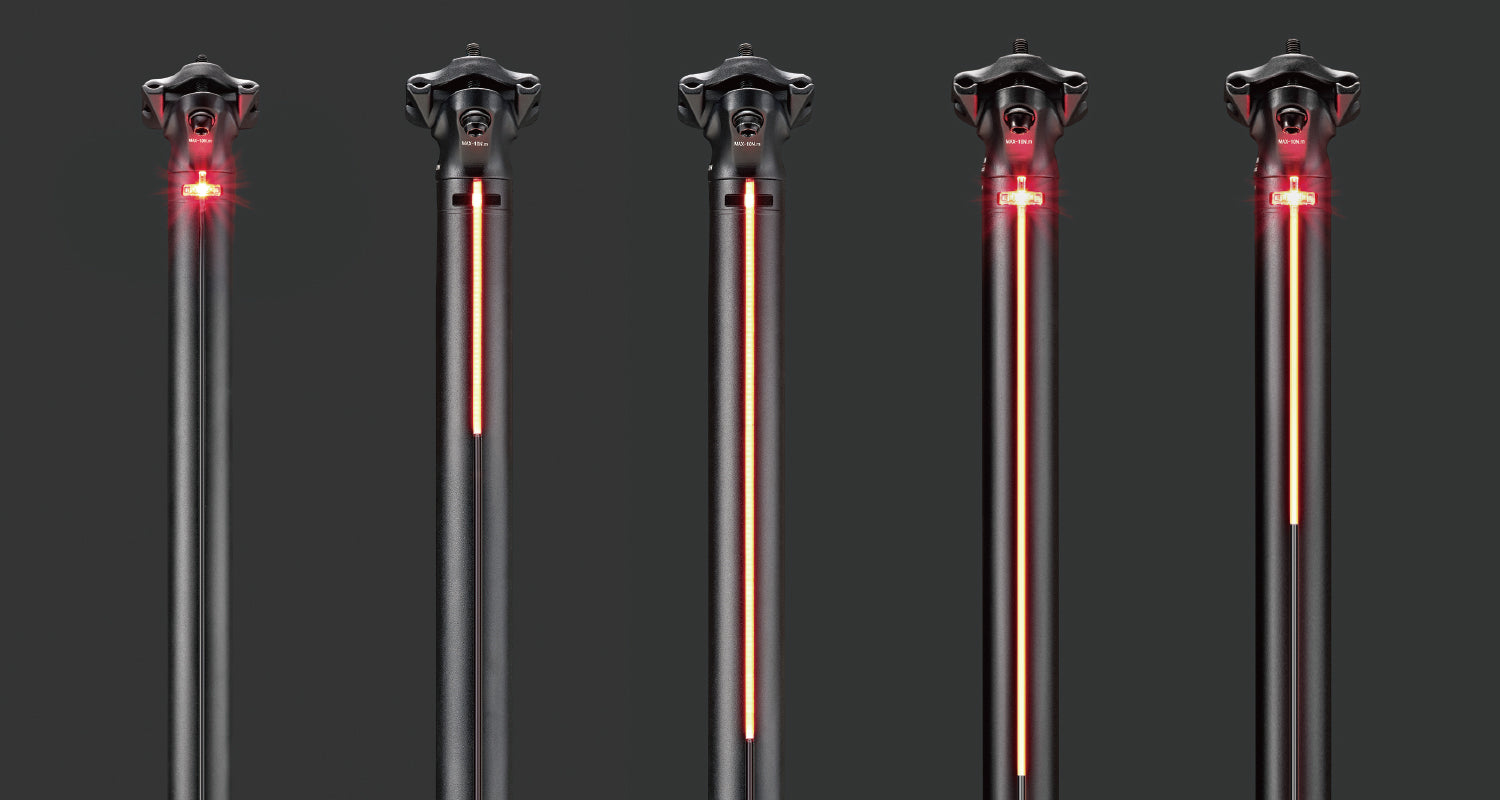

LightSKIN has developed a technology that utilizes COB strips to emit light in a continuous line. To achieve this, it designed a uniquely structured seatpost that seamlessly connects the interior and exterior, allowing the COB strip to be securely mounted. At the top of the SF, a specialized lighting module meets StVZO standards. Beneath this module, a built-in COB strip further enhances visibility and safety for riders.

Features

Features

Diameter (see drawing) : 27.2㎜ / 30.9㎜
Widths (see drawing) : D27.2mm(350mm) / D30.9mm(350, 400mm)
Color and surface finish : Matt Black
Seatpost Type : 2 bolt clamp offset 9㎜
mechanical stopper 14㎜ from top
Material Aluminum : 6061 T6

Light unit

Light unit

SFE-SC (E-bike)

Light Module : High brightness StVZO rear light module
Red COB light strip
Power Source : The on-board battery of the e-bike
Nominal voltage : DC 12V (6V-24V)
Power consumption : 2W

SFE-S (E-bike)

Light Module : High brightness StVZO rear light module
Power Source : The on-board battery of the e-bike
Nominal voltage : DC 12V (6V-24V)
Power consumption : 0.48W

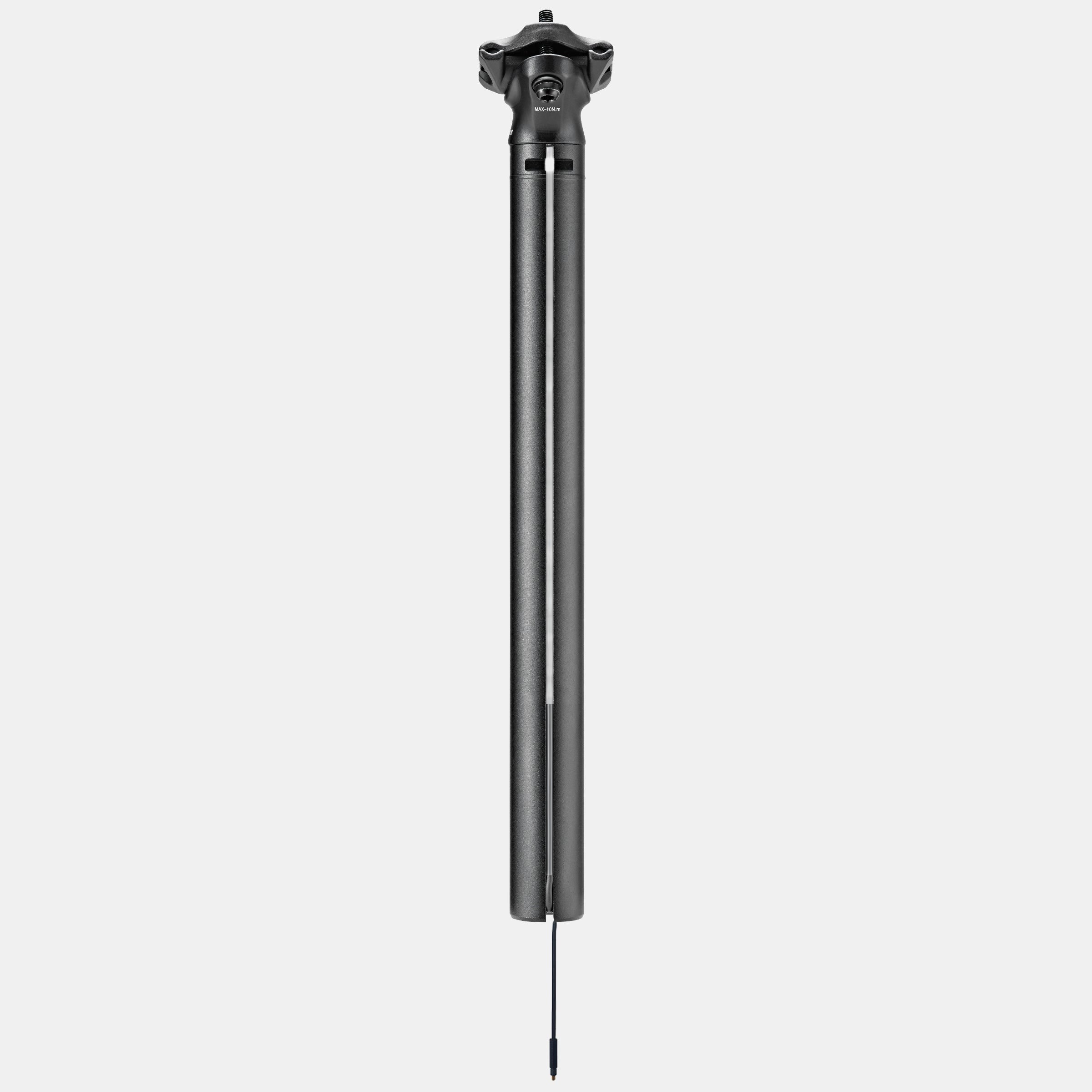

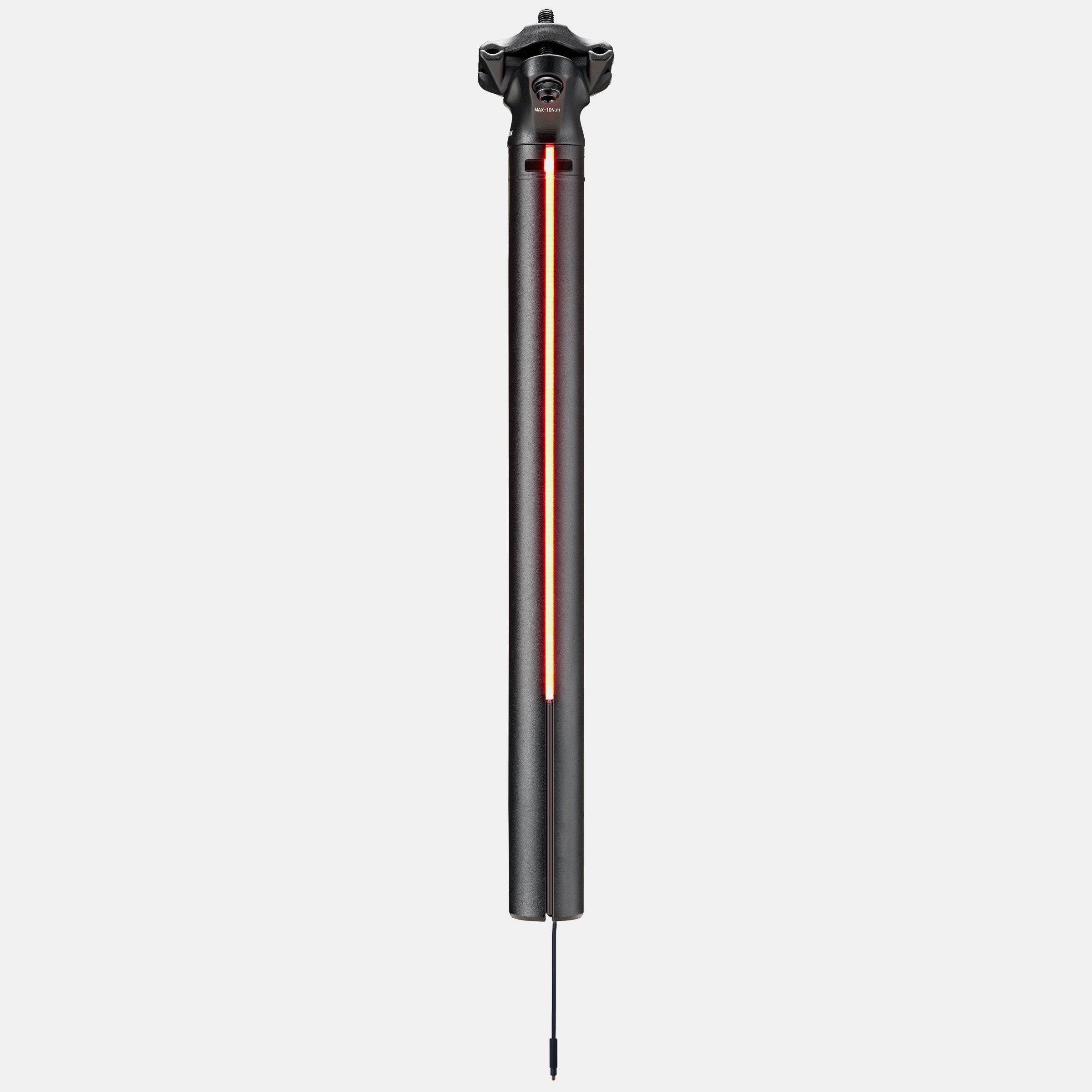

SFE-C (E-bike)

Light Module : Red COB light strip
COB length : 25㎜(Min, 1unit) to 225㎜(Max, 9units)
SFE-C.4 100㎜ COB (4units)
SFE-C.9 225㎜ COB (9units)
Power Source : The on-board battery of the e-bike
Nominal voltage : DC 12V (6V-24V)
Power consumption : SFE-C.4 0.6W (100㎜ COB)
SFE-C.9 1.4W (225㎜ COB)

ETC

ETC

Approval Code : K 2532
Seatpost test standard : EN15194, EN17404, ISO-M
Compliant withstandard or directive : CE, RoHS, StVZO §22a TA Nr.14b(Rear lights fot bicycles), IPX6
Package Contents : Rear light seatpost
