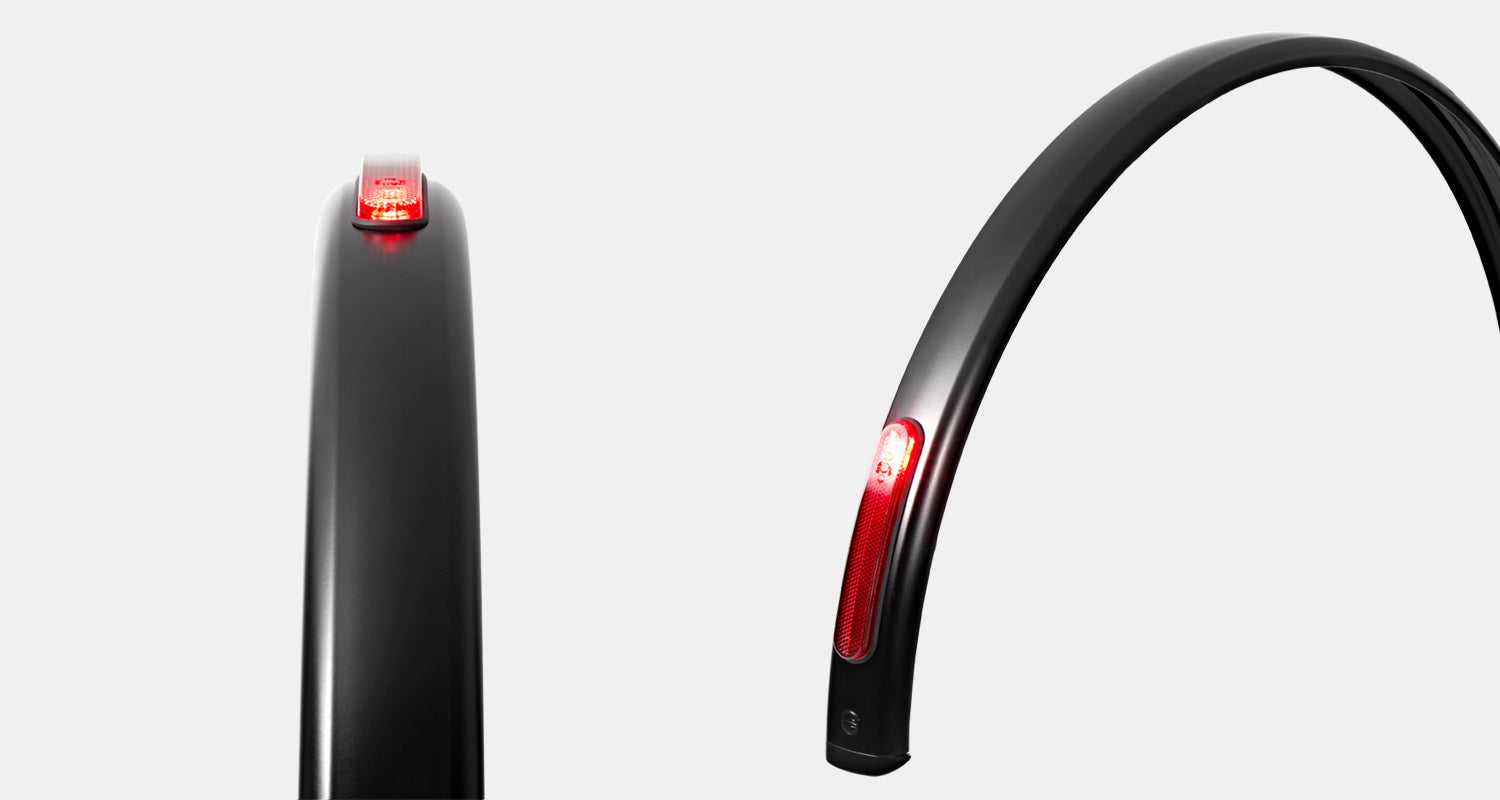

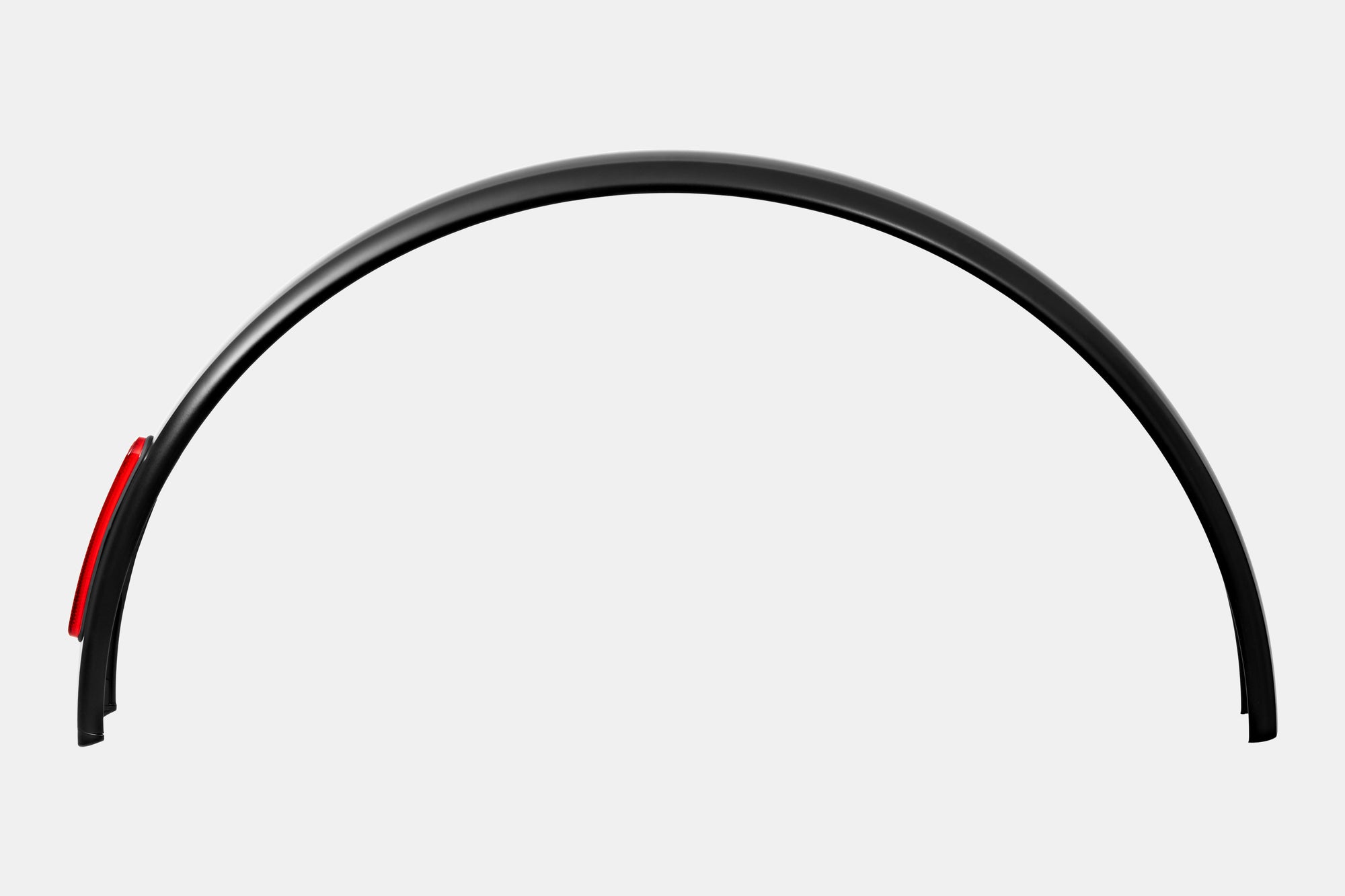

The LightSKIN ZR is a curved reflector designed for bike fenders that integrates a rear light. The advantage of its curved design is that it perfectly matches the curved surface of the bicycle fender, greatly enhancing the bicycle’s overall design. ZR almost does not protrude and adheres closely to the fender, so it is less likely to break, is safe and can be used for a long time. Existing reflectors have a flat shape to maximize reflection efficiency, but LightSKIN has created a rearlight integrated reflector with a curvature of 1.62/m through precise processing and clever optic design. The ZR has passed StVZO regulations for both reflectors and rear lights.
Rear light + Reflector integrated in one
Rear light + Reflector integrated in one
Light Unit
ZRE
Light Modul : 2 high bightness red leds
Brightness : 12cd
Power Source : DC 5~24V
Power consumption : 0.4W
ZRD
Light Modul : 2 high bightness red leds
Brightness : 12cd
Power Source : AC6V
Power consumption : 0.3W
ZRE / ZRD
ZRE / ZRD
ZRE and ZRD are rear light integrated reflector for bike fender.
In the ZRE version, the light is powered via a cable connected to an external power source. In the ZRD version, the light is powered by a hub dynamo.
Features

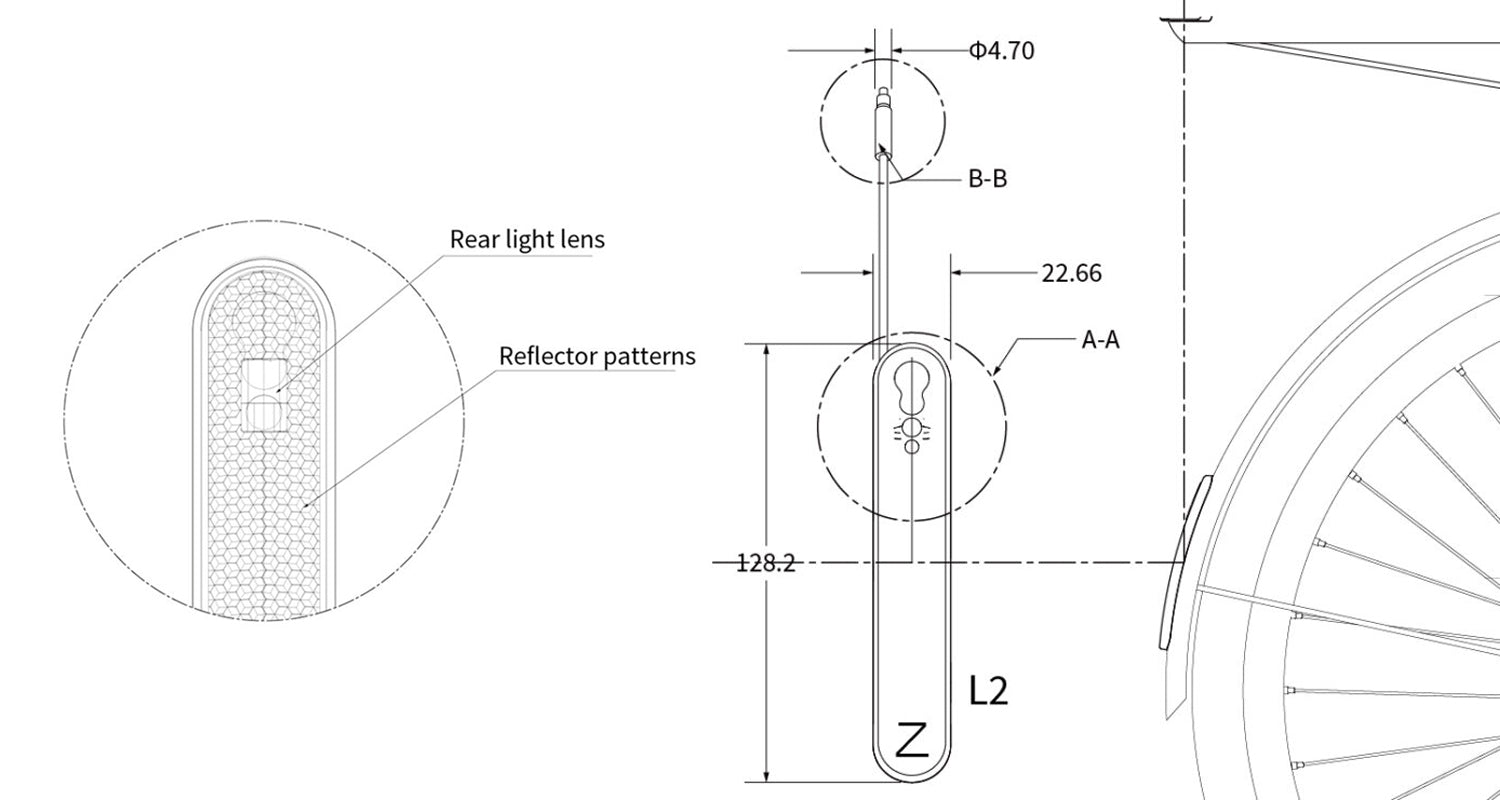

Dimension : 128.2mm x 22.6 mm x 14.6mm
Material : Refelctor=PMMA
Weight : 40gram
StVZO approved REAR LIGHT
StVZO approved REAR LIGHT
ETC
Approval Code : K 2135(Rearlight), K 2136(Reflector)
Compliant withstandard or directive : CE, RoHS, UN3481,
StVZO §22a TA Nr.14b(Rearlight)
StVZO §22a TA Nr.18(Reflector)
IP66
Contents : Rear light integrated reflector for bike fender
* fender not included
Version
In the ZRE version, the light is powered via a cable connected to an external power source.
In the ZRD version, the light is powered by a hub dynamo.
OEM only. For purchasing inquiries, please contact us via email.
