U1

Neo Ultra Light is a high-powered variant of the Ultramini light.Although slightly larger in size, it delivers over three times the power.For bicycle manufacturers and consumers seeking a combination of compactness and superior illumination, the Neo Ultra Light stands out as the obvious choice.

Features&ETC

Features&ETC

Features

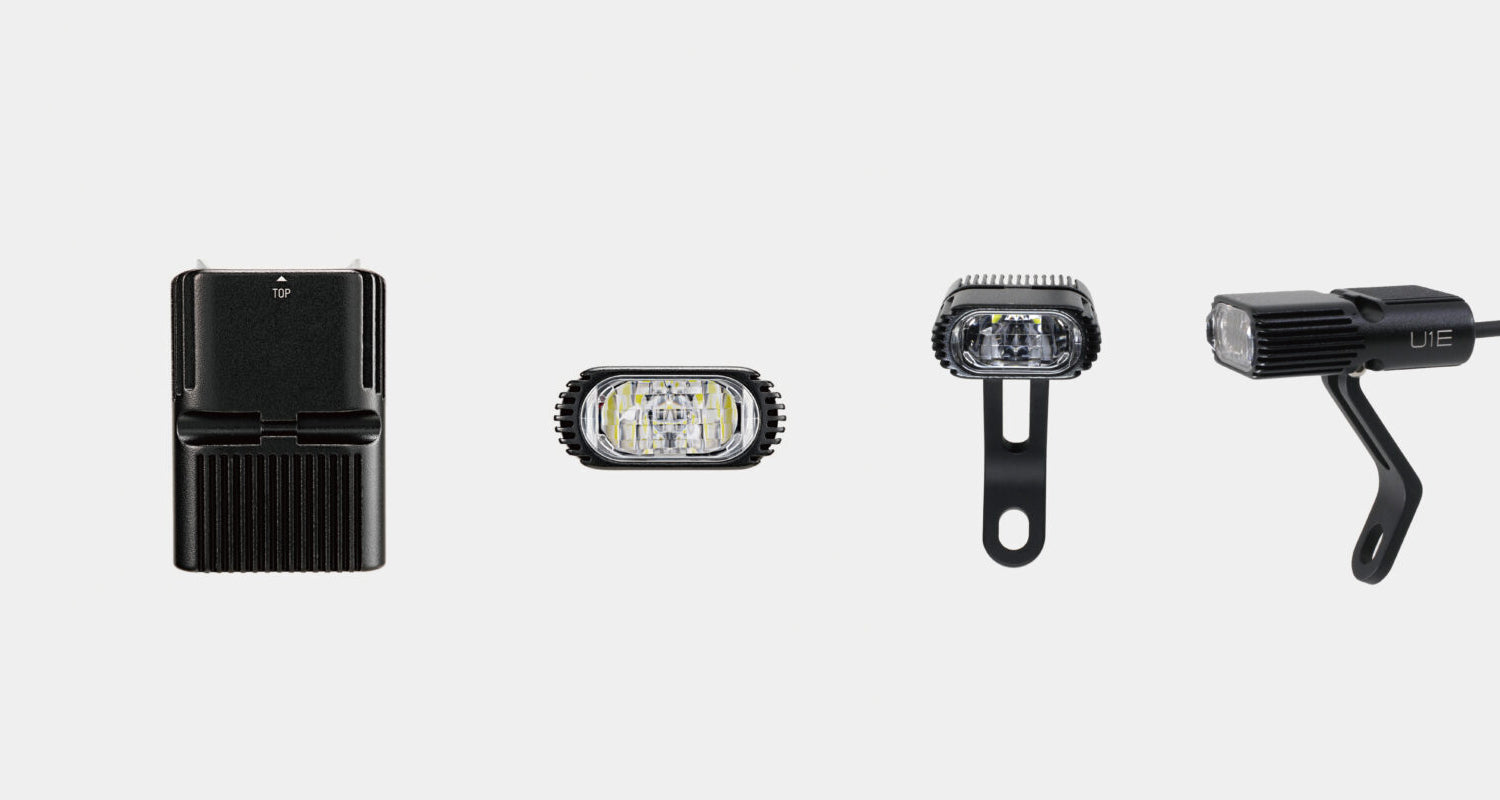

Dimensions : 36mm ×16mm ×52mm
Weight : 43gram
Color and finish : Matt black
Housing material : Aluminum 6061 T6

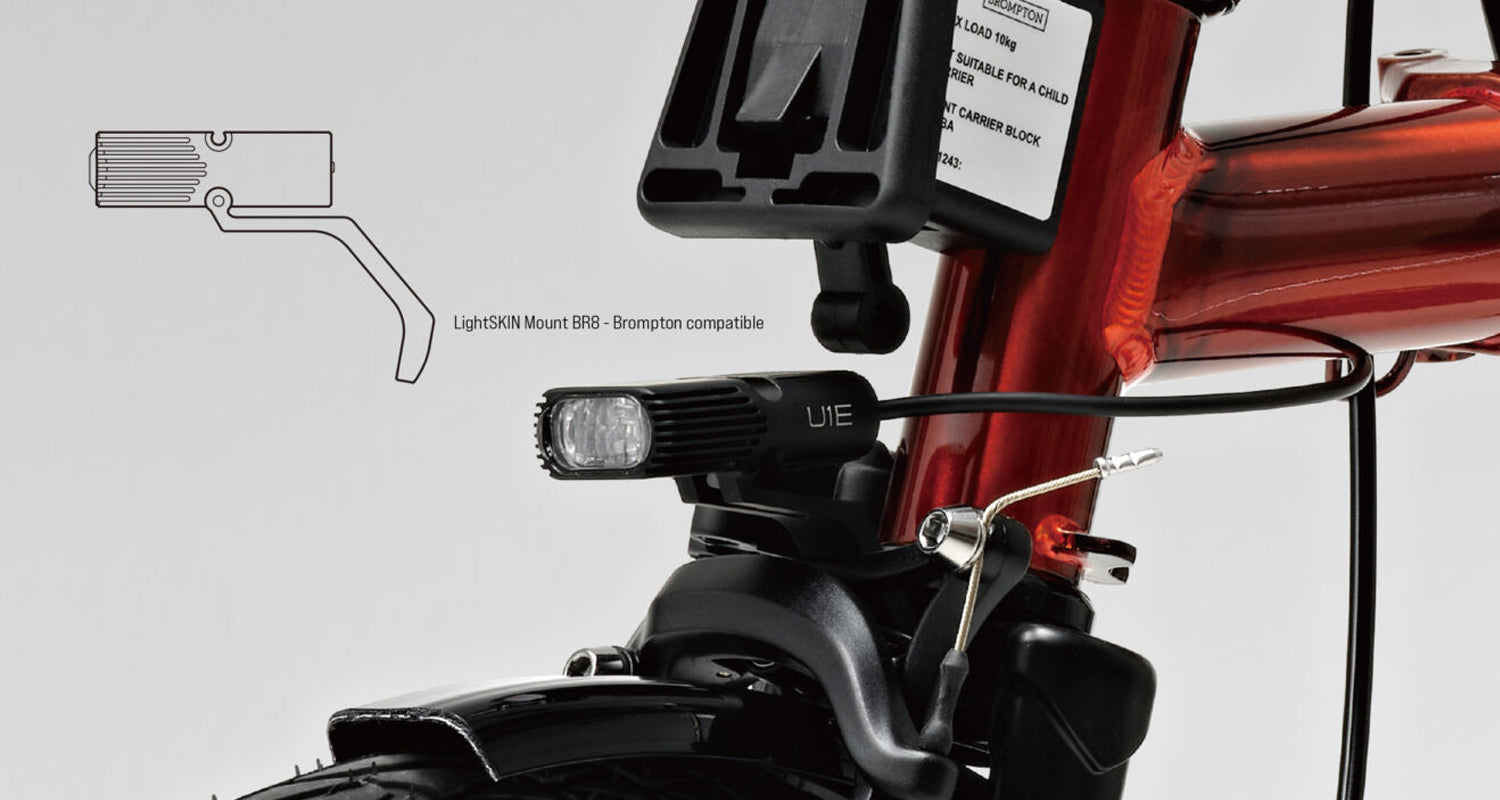

Bracket : Dual position bracket

ETC

Standard or directive : CE, RoHSStVZO §22a TA Nr.23(Headlights for bicycles)IPX5

Light unit

Light unit

U1E-1L-S(StVZO)

Light module : LightSKIN V1 lens, 1 high-brightness LED
Power source : On-board battery of the e-bike or other devices
Brightness : 400 lm
Voltage : DC 12V (5V – 18V)
Power consumption : 5 W

U1E-3L

Light module : LightSKIN V1 lens, 3 high-brightness LEDs
Power source : On-board battery of the e-bike or other devices
Brightness : 800 lm
Voltage : DC 12V (5V – 18V)
Power consumption : 10 W

Functions

Functions

U1E-1L-S(StVZO)

Wired control : It can be turned on/off from other devices via
UART communication
Control switch : Internal switch, External switch
Protection : Overheating protection sensor
Reverse polarity protection
Modes : Low beam(Max), Low beam

U1E-3L

Wired control : It can be turned on/off from other devices via
UART communication
Control switch : Internal switch, External switch
Protection : Overheating protection sensor
Reverse polarity protection
Modes : Super brightness mode, Low beam(Max),Low beam, Flash

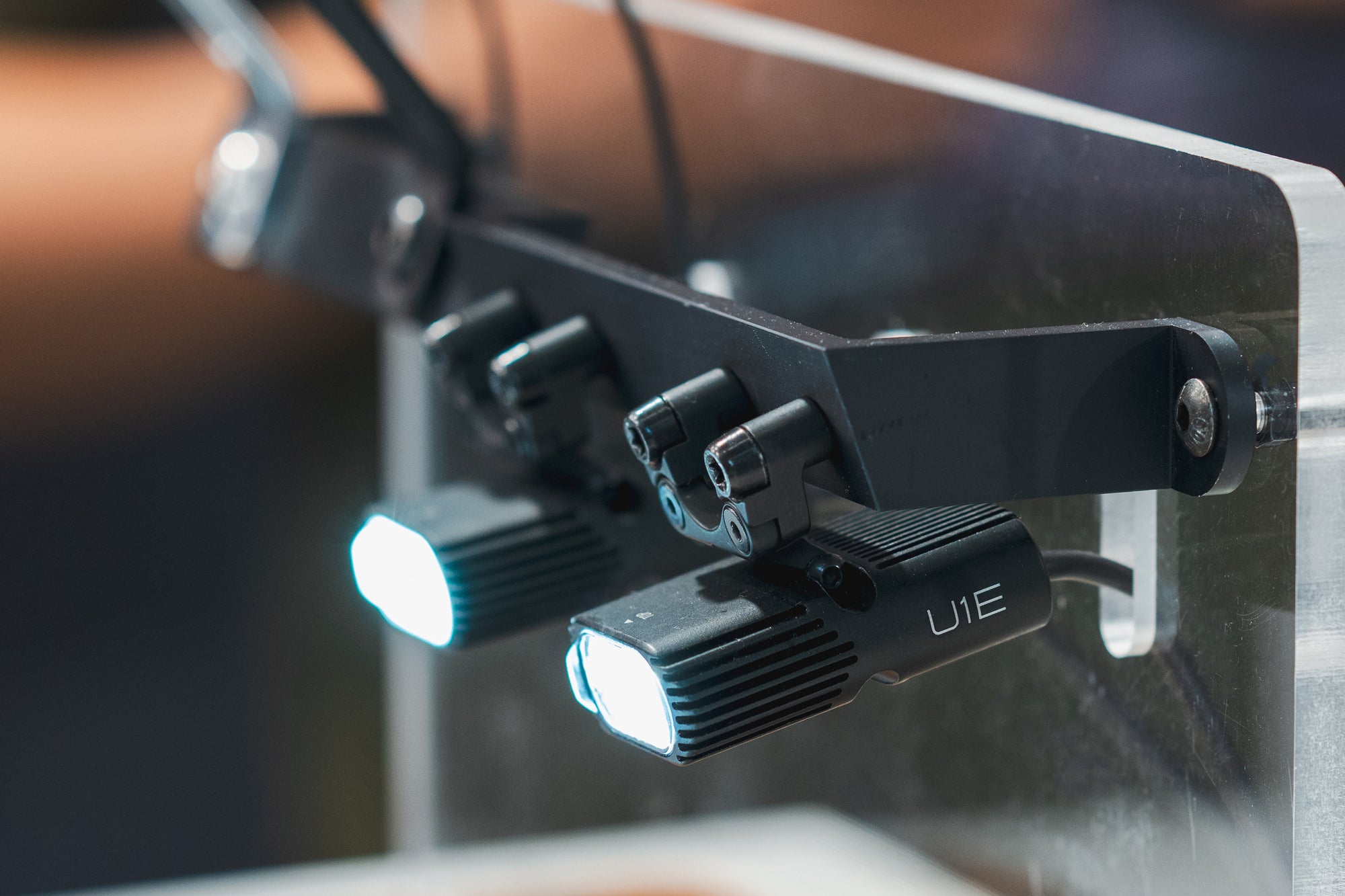

U1E

The U1E has much more powerful light performance whileproviding a flexible solution for controlling LEDs and otherfunctions on electric bikes and other devices.
Dual control modes of UART communication and externalswitches, automatic mode conversion and various LEDconfigurations allow it to adapt to differentrequirements.

Control

Communication and Control

UART Communication
This allows external devices to transmit commands to the U1E.UART (Universal Asynchronous Receiver-Transmitter) is a serial communication protocol usedfor data exchange between devices.
External Switch Control
The U1E can also be controlled via an external switch. This provides a manual method of control,which can be particularly useful in situations where simplicity and reliability are needed.

Automatic Mode Conversion

Shared Wire for Control Modes
Both UART communication and the external switch mode use the same wire.The U1E automatically switches between these modes, ensuring seamless operation without the need for additional wiring or manual switching.
