Powered by Hub dynamo
Compliant with StVZO (German Road legal)

Check the guideline Before you buy E-bike type

diameter(center): 31.8

width: 640

color: matt black

$118.00

In stock, ready to ship

1. Delivery Information (International Shipping)
Processing Time: Your order will begin processing and dispatch starting on the 3rd business day following order confirmation.
Delivery Time: Delivery typically takes 5–7 business days from the date of dispatch, depending on the destination address.

2. Returns and Refunds (Important Notice)
PLEASE READ CAREFULLY BEFORE PURCHASING

Our pricing is based on a "Shipping Fee Included" condition, meaning the actual international shipping cost to deliver the product to you is initially covered by the seller. Due to the high costs associated with international freight, our return policy is as follows:

Return Shipping Cost: The customer is responsible for all return shipping charges. All returns must be sent prepaid.

Refund Deduction Warning: Your final refund will be the original purchase price minus the actual international shipping cost that the seller initially incurred to send the item to you.

1. Shipping Fee Policy

All product prices displayed on our website include the standard international shipping fee. You will not be charged extra for shipping at checkout.

2. Shipping Carrier & Time

  • Carrier: All orders are shipped from South Korea using reliable express carriers, UPS or DHL.
  • Processing Time: Orders are processed and dispatched within two (2) business days following order confirmation.

  • Delivery Time: Delivery times vary based on the destination country, but generally take 5 to 7 business days after dispatch. Please note that these are estimates only and are not guaranteed.

3. Tracking and Notification

  • Shipping confirmation and tracking information will be sent to your registered email address once your order has been dispatched from our facility.

4. Customs and Duties (Customs Clearance)

  • Customer Cooperation Required: The customer is responsible for cooperating with local authorities and the carrier by submitting any necessary information or documents required for customs clearance in the destination country.
  • We are not responsible for delays caused by customs processing. Any duties, taxes, or import charges incurred are the responsibility of the customer.

Customer Responsibility for Return Shipping: Should you wish to return or exchange your product, the item must be shipped back to LightSKIN prepaid (at your own expense).

Refund Calculation: Your refund amount will be the original product price minus the actual international shipping cost that was incurred when the order was first dispatched to you. The minimal shipping fee you paid at checkout does not cover the true cost.

Prior to Purchase: Due to the high logistics costs associated with international returns, we strongly advise you to review your order carefully and consider this policy before making your purchase.

The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.

  • Diameter (㎜) : Center 31.8 / Grip 22.2
  • Handlebar width (㎜) : 640 / 680
  • Bar Type : Back sweep 15˚, Up sweep 0˚, Rise 20㎜
  • Handlebar color and surface finish : Polished Silver / Matt Black
  • Handlebar material : Aluminum 6061 T6

  • Light Module : LightSKIN H2 Lens
  • Luminous flux : 150lm
  • Power source : AC 6V(3W) Bicycle Dynamo
  • Nominal voltage : AC 6V
  • Power consumption : 2.4W

The headlight turned on when the bike is moving. The headlight turned on for 4 minutes after the bike is stopped.

  • Handlebar test standard : ISO 4210 Mountain, City
  • Approval Code : K 1721
  • Compliant with standard or directive : CE, RoHS, StVZO §22a TA Nr.23(Headlights for bicycles), IPX4
  • Package Contents : Front light handlebar, 2000mm extension cable

Secure online shopping
PayPal

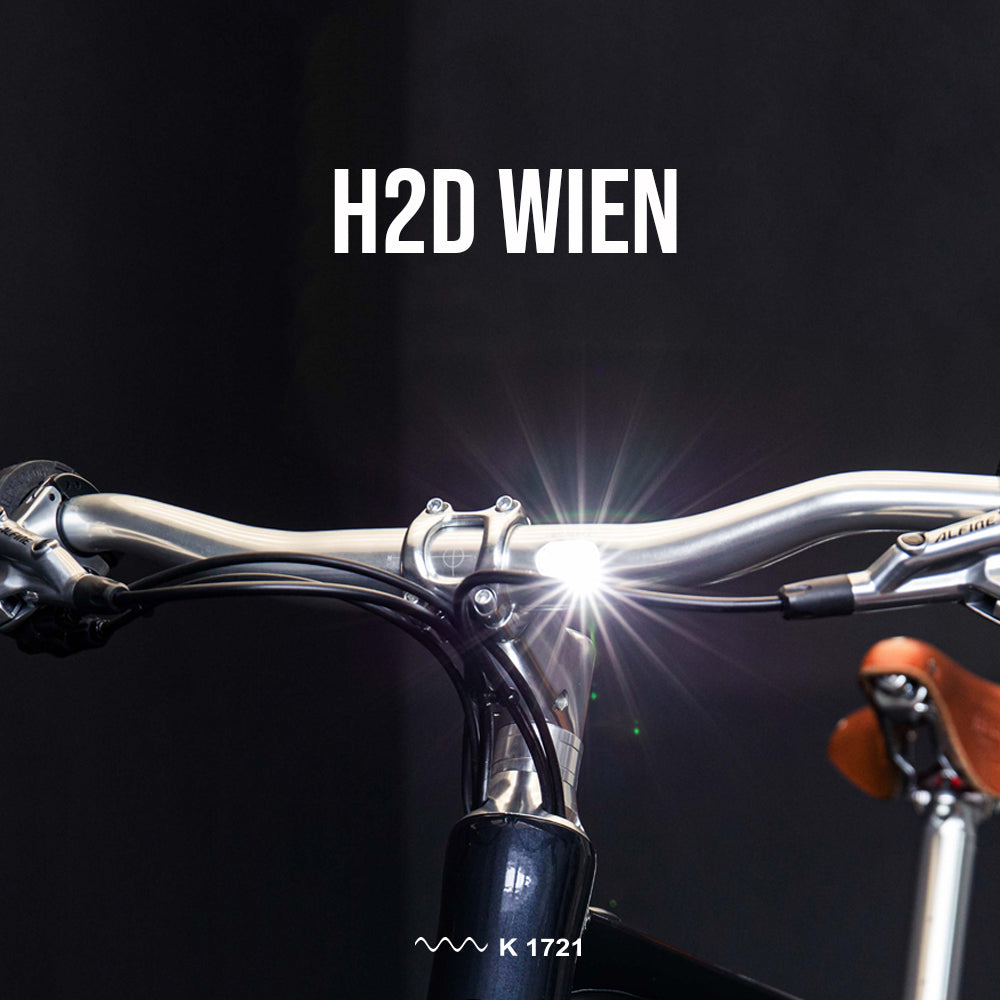

The Details

  • Diameter:

    Center 31.8mm ⁄ Grip 22.2mm

  • Handlebar width:

    640mm ⁄ 680mm

  • Wien Bar Type:

    Back sweep 15˚, Up sweep 0˚, Rise 20㎜

  • Handlebar material:

    Aluminum 6061 T6

  • Approval Code:

    K 1721

  • Luminous flux:

    150 lm

  • Power source:

    AC 6V(3W) Bicycle Dynamo

H2D

In the H2D version, the light is powered by a hub dynamo.
Simply connect the enclosed extension cable to the handlebar and hub dynamo.Headlight for bicycles integrated in the handlebars (with 1 led).

UP CLOSE

UP CLOSE

Light Module : LightSKIN V2 Lens

An LED with integrated electronic light control. The lens itself does not have a reflector and is protected by an additional protective screen. The LED, circuit board and battery are fully integrated in the handlebar tube and are thus protected (dust and splash proof in accordance with IPX5).

Special handlebar design of H2

The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.

How Was Built-in Light Handlebar Created?

Shape of the headlight in front of the wing of a Boeing Airplane

Unique LED Hole Shape In Can Opener (Can Tab) Shape

In order to build the head light at the handle bar, more than 12mm hole shall be necessary, and if the hole of these sizes is carved into the handle bar, the strength or durability of handle bar can be deteriorated. To solve such problems, we have made unique LED Hole shape in Can opener (Can tab) shape. This hole prevents the stress applied surroundings of hole to be concentrated on a certain point, so that it eventually prevents the damages on handle bar upon the process of hole.

The hole shape of the Lightskin handlebar

With this technology, we could make 25.4mm handle bar in diameter with possible ISO-City to be passed up to 560mm and 31.8mm handle bar in diameter with possible ISO-Mountain to be passed up to 700mm.

Assembly

The handlebars must be mounted centrally in the stem and the headlight must not, under any circumstances, be covered. The headlight must be mounted so that it emits light from the front. The reference axis (see drawing) must be aligned parallel to the bicycle’s longitudinal axis.

Mounting height of the headlight according to the StVZO : Min.: 400 ㎜, Max.: 1200 ㎜

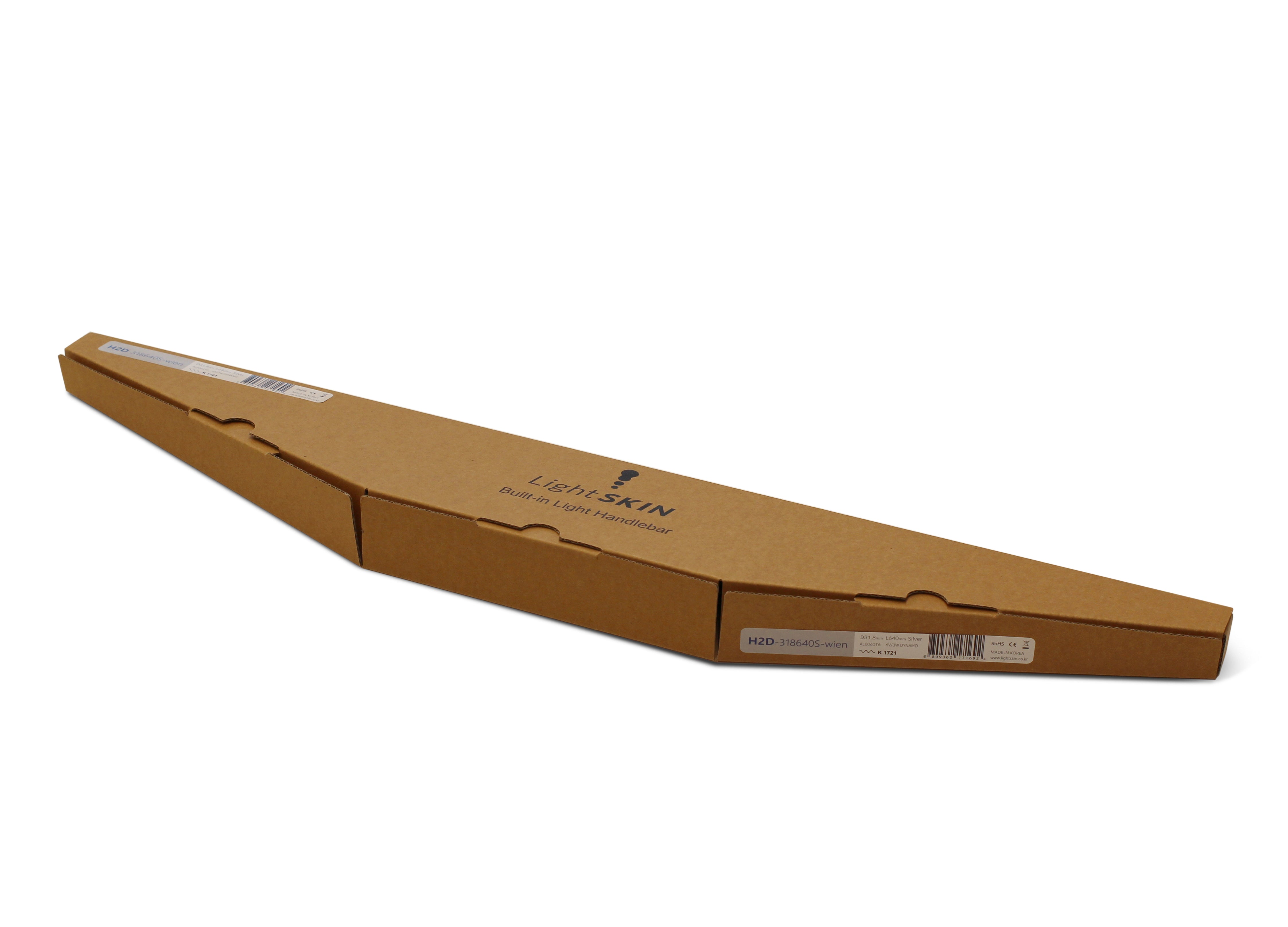

H2D WIEN Shipping

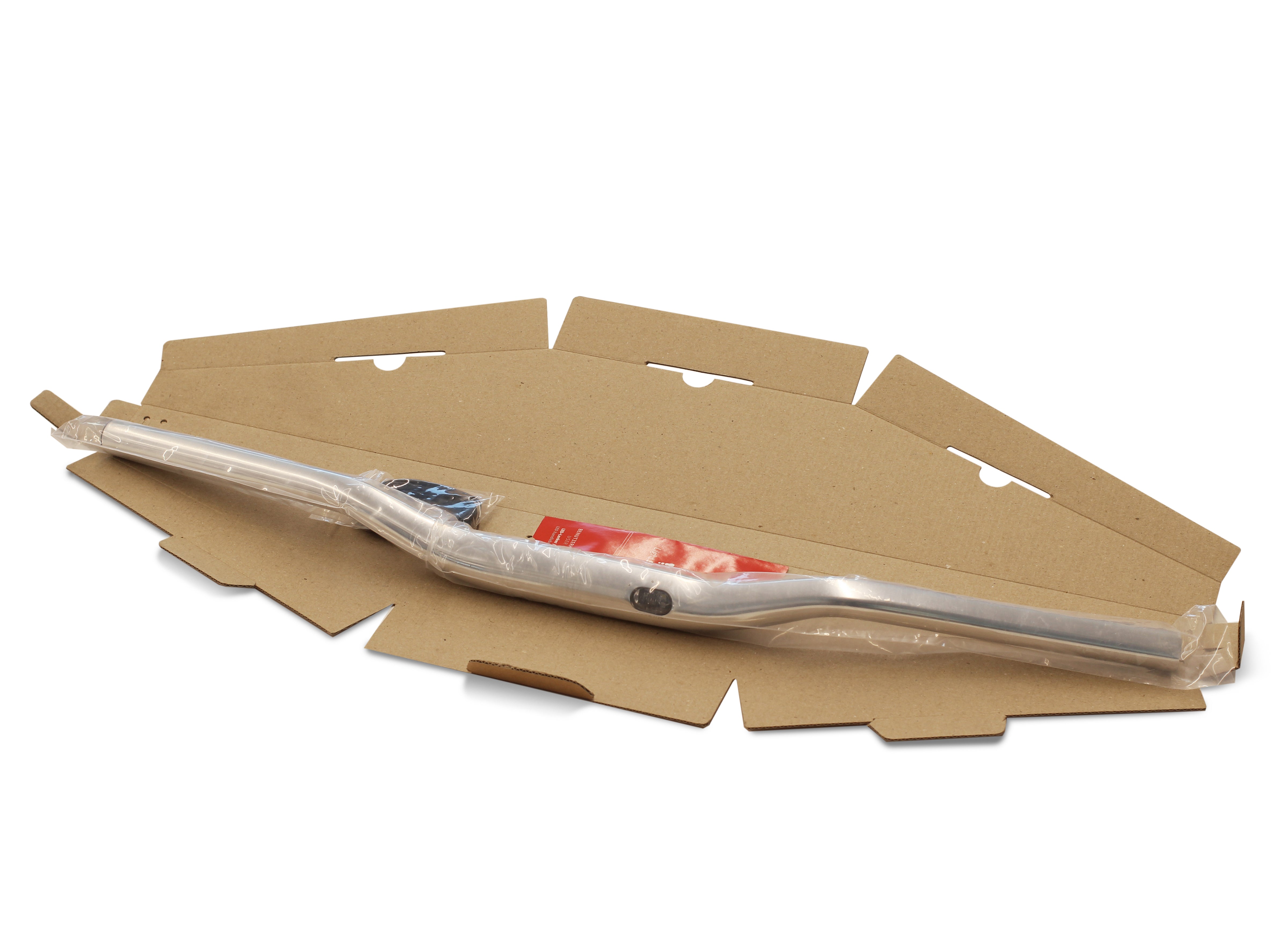

Package Contents

Front light handlebar

Shipping

Weight

  • 31.8 – 640 : 0.56kg
  • 31.8 – 680 : 0.62kg

------------------------------------------

Dimension

  • 31.8 – 640 : 680*120*50
  • 31.8 – 680 : 710*120*50

Headlight for bicycles integrated in the handlebars

Component parts of lighting integrated into one assembly compared with the existing lighting, it has low risk of breakage because there is no obtrusion on it, and the chance of its theft is low. In addition, its simple design is harmonized with the design of a bike, providing the greatest satisfaction in terms of design.
