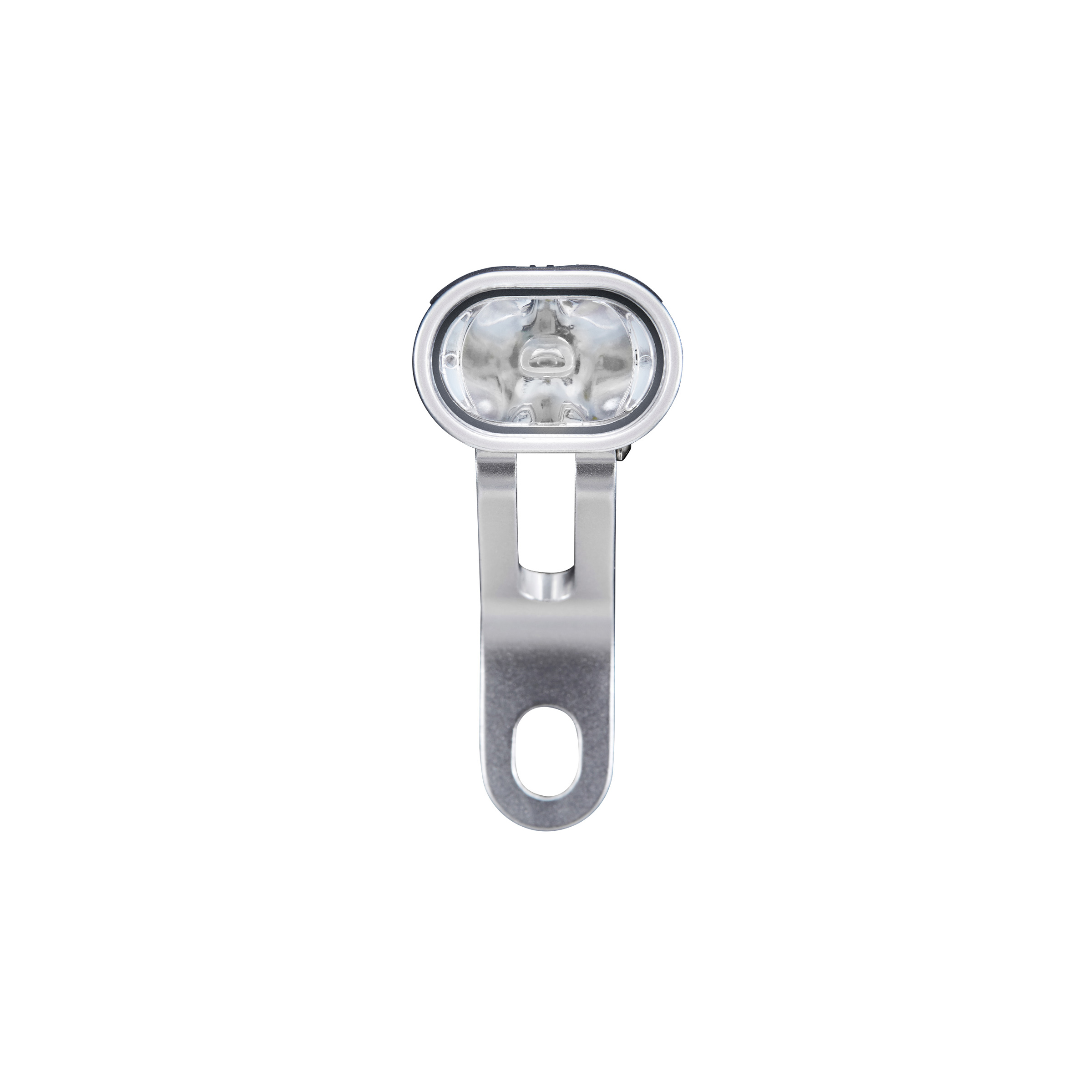

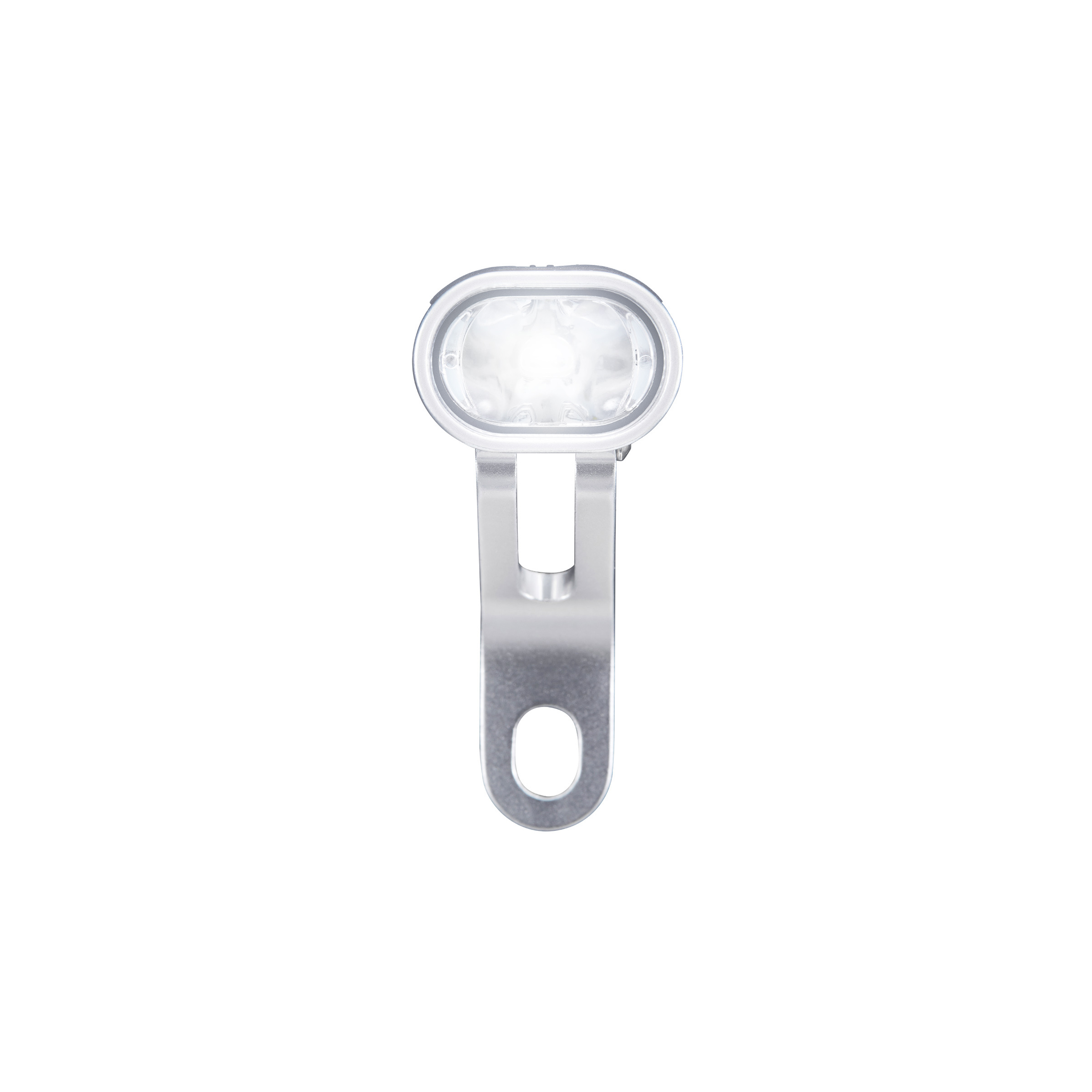

Ultramini light - U2E
In the U2E version, the light is powered via a cable connected to an external power source (e-bike’s battery).
StVZO version available in Germany, light will be always on mode when turn on the light thru e-bike computer. Please purchase after checking the compatibility of the connector in the battery part of your electric bicycle. If you need an extension cable, please send us a message in the contact us window.
특징
Dimensions (㎜) | 34.7 ×19 × 28 |
Weight (gram) | 20.5 (without bracket, without cable) |
Color and finish | Polished Silver / Matt Black |
Housing material | Aluminum 6061 T6 |
Bracket | Dual position bracket |
ETC
K-number | K 1817 |
Compliant with standard or directive |
CE, RoHS, StVZO §22a TA Nr.23 (Headlights for bicycles), IPX5 |

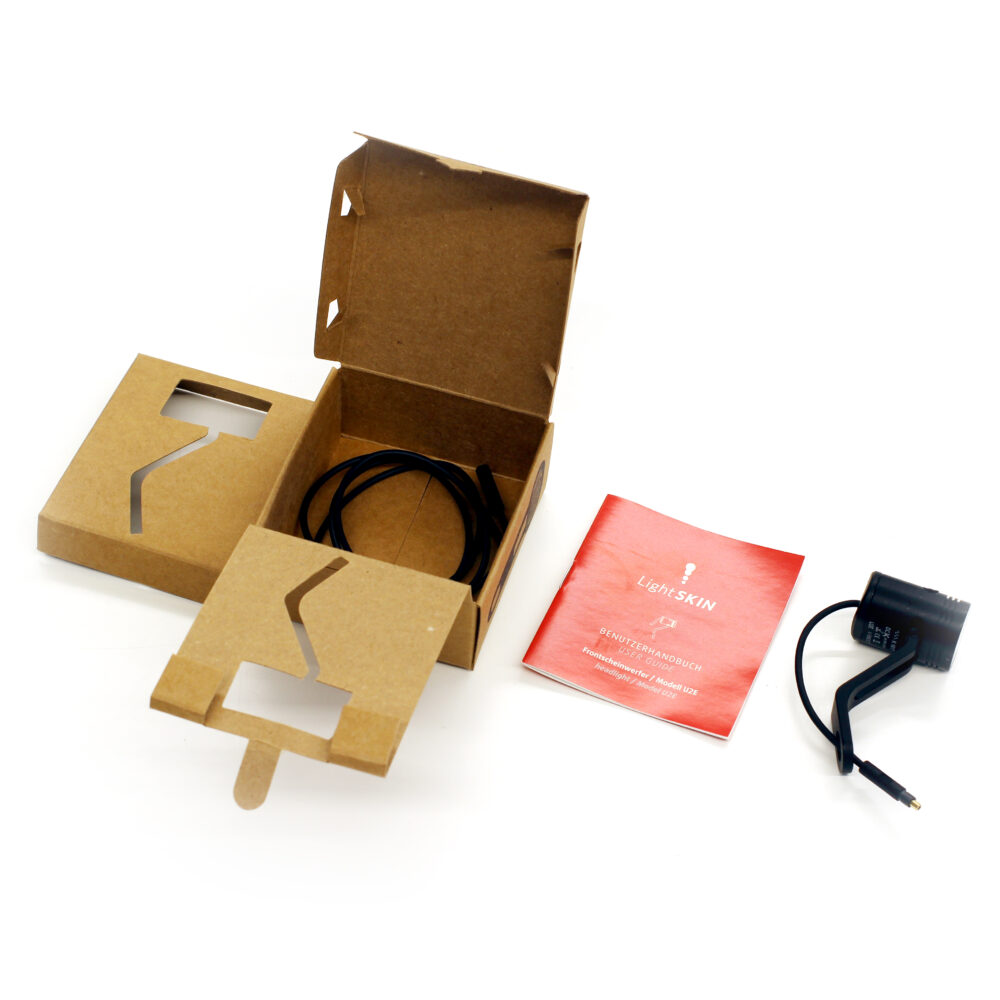

Package Contents | U2 front light, Fork bracket |
기능
The headlight light is operated by the light switch of the e-bike system.
The headlight does not have a high beam or daytime light mode.
Light unit
Light Module | LightSKIN H2 Lens |
Brightness | 150 lm |
Power source | On-board battery of the e-bike |
Nominal voltage | DC 6V (5V-24V) |
Power consumption | 1.3W |
Operating Temperature | Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C |
