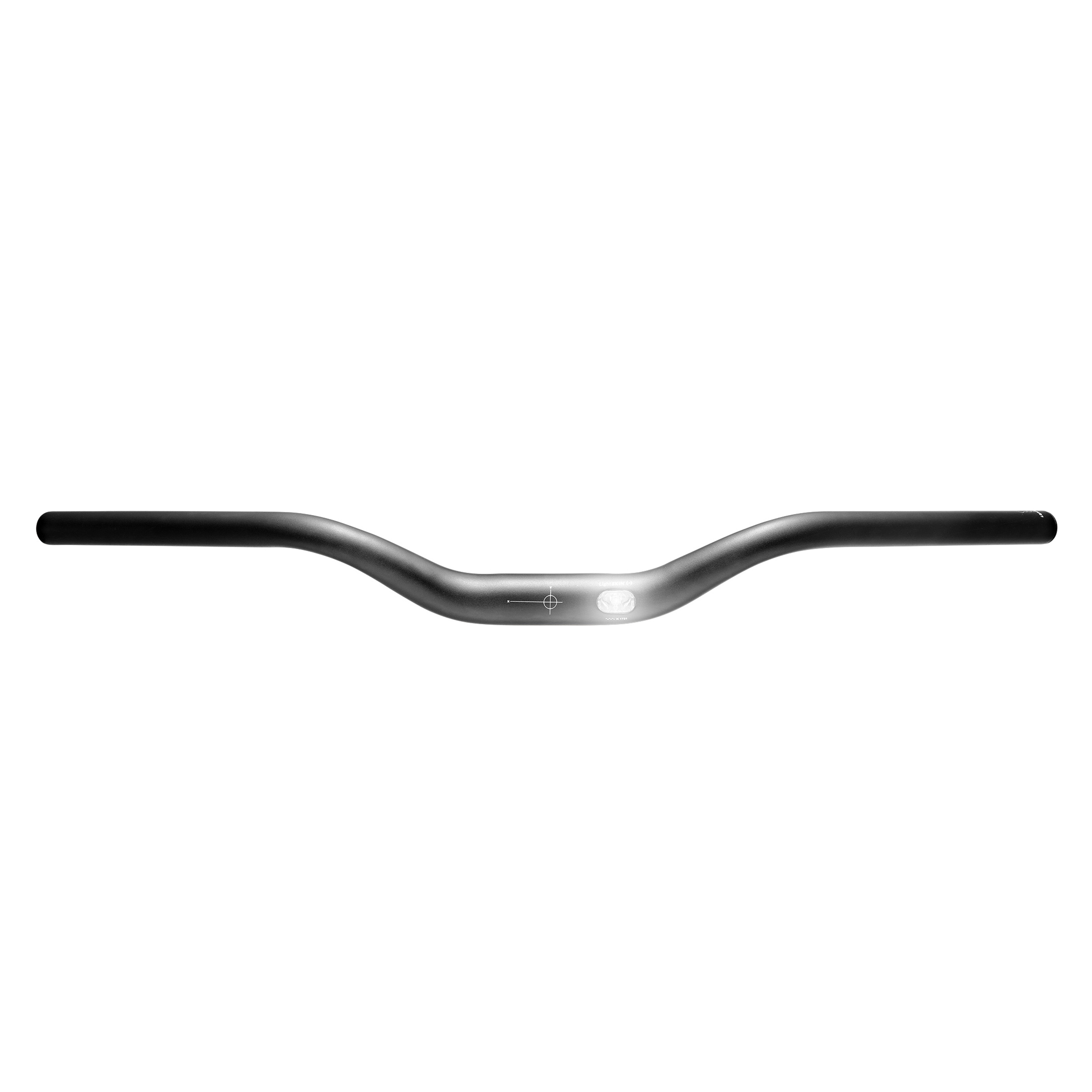

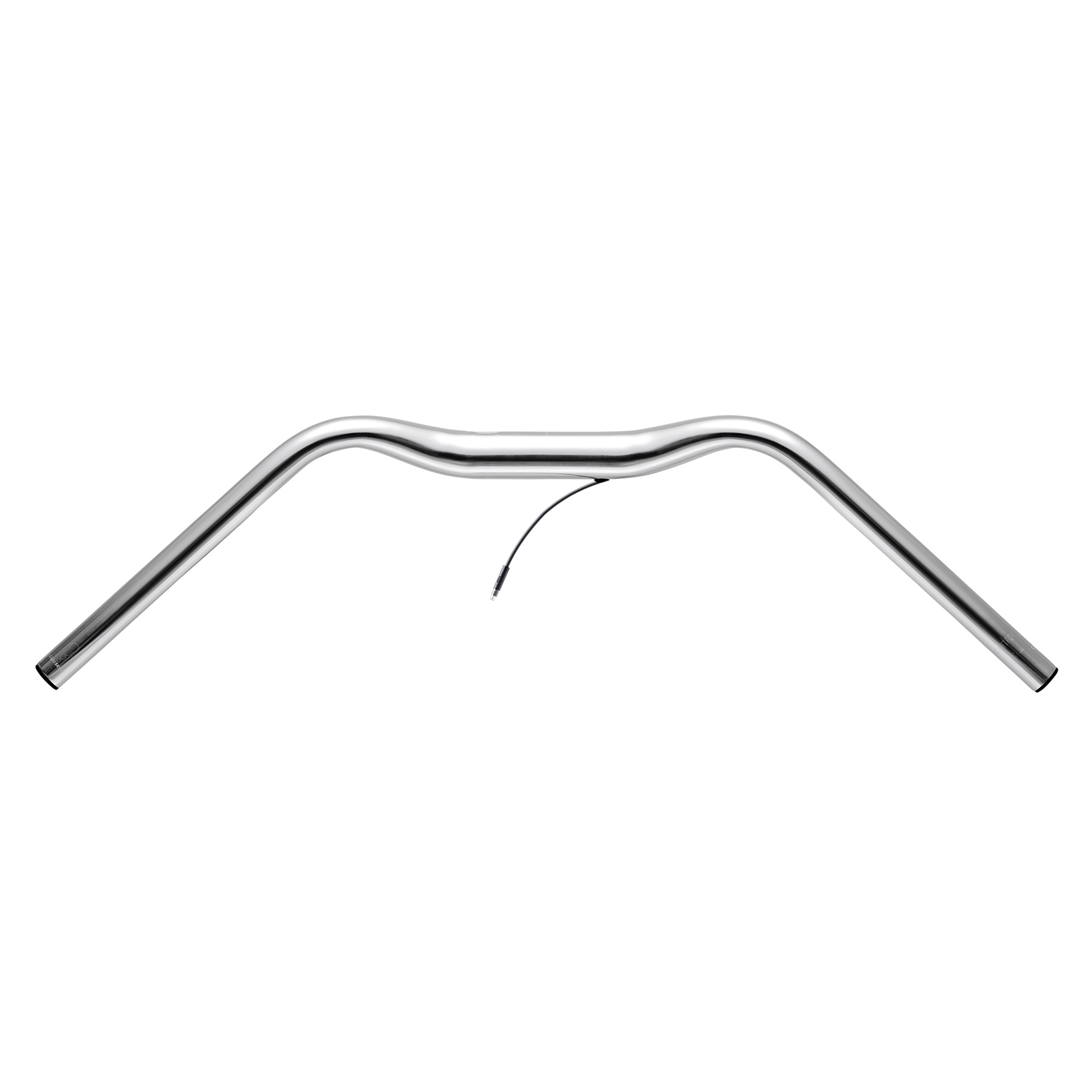

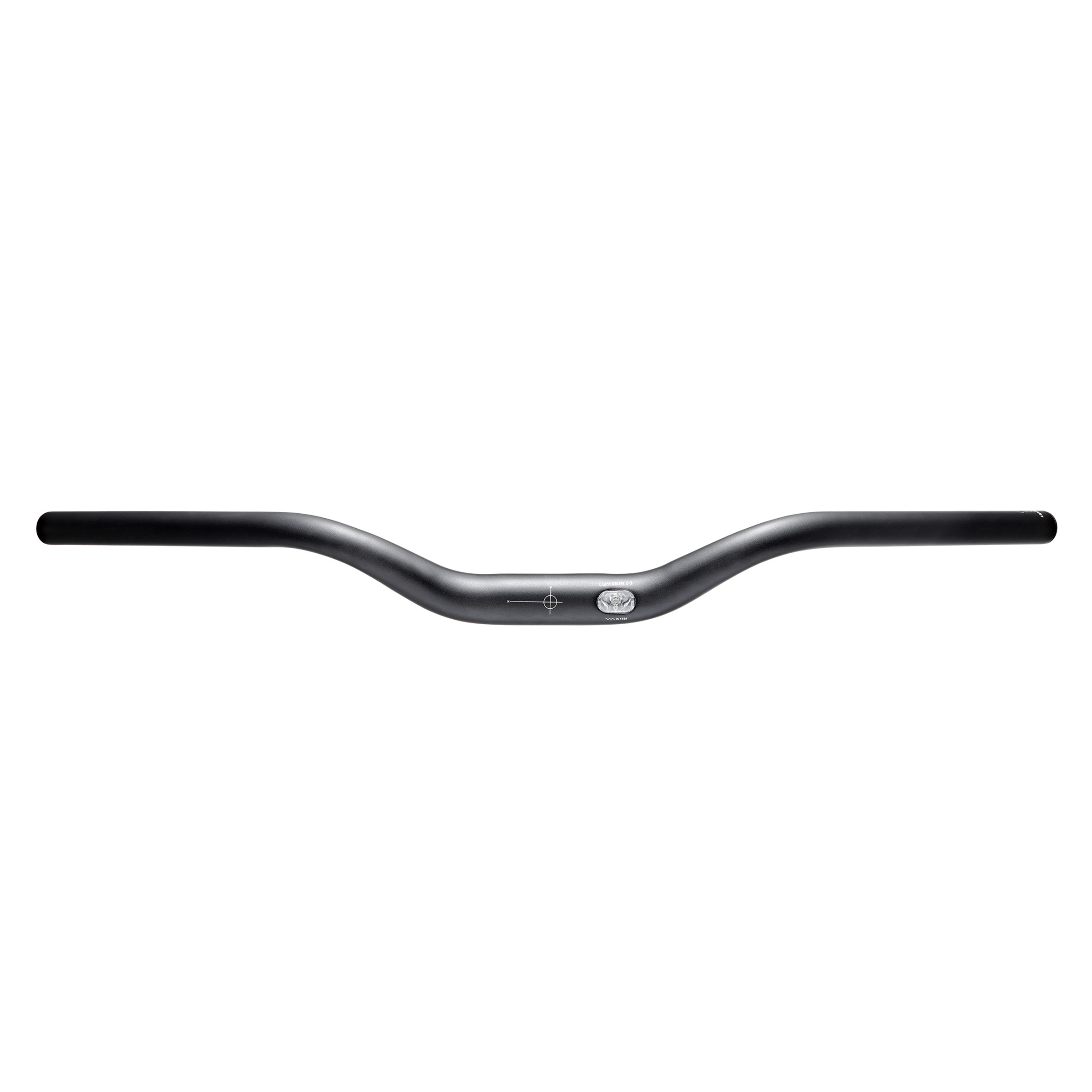

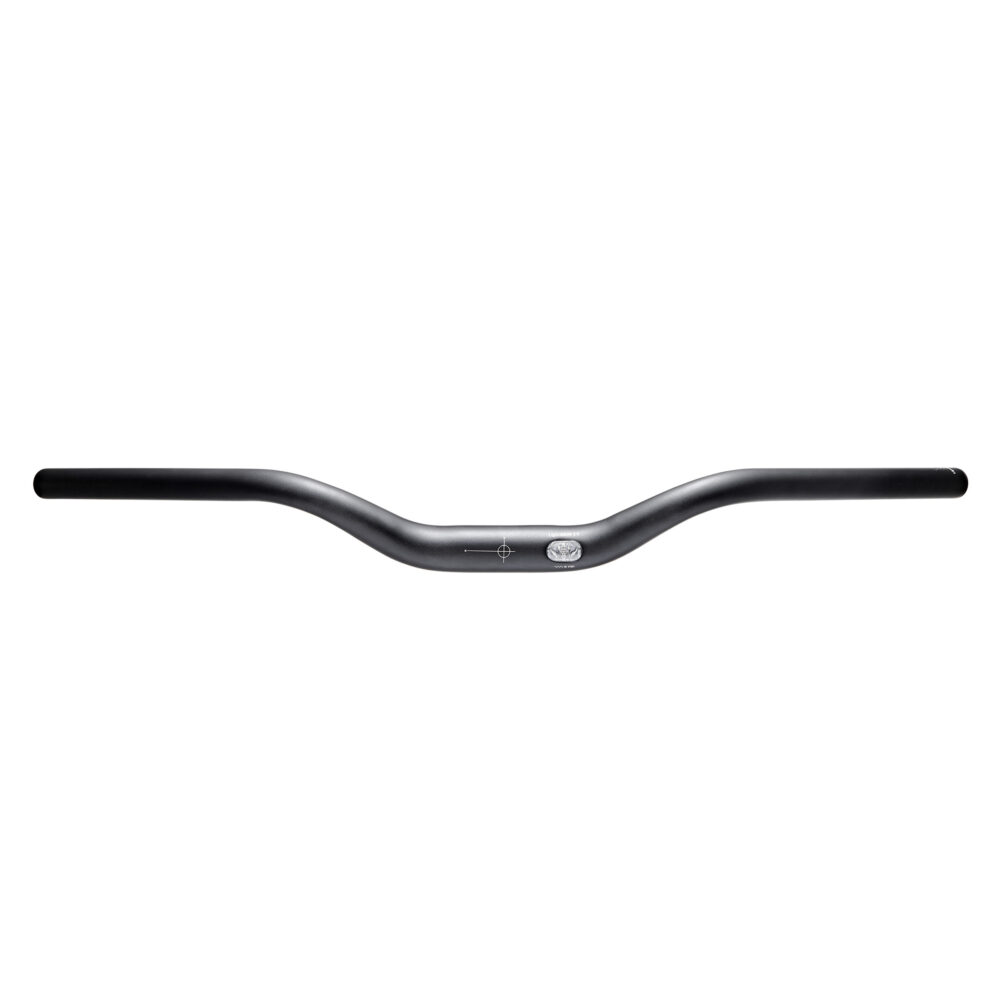

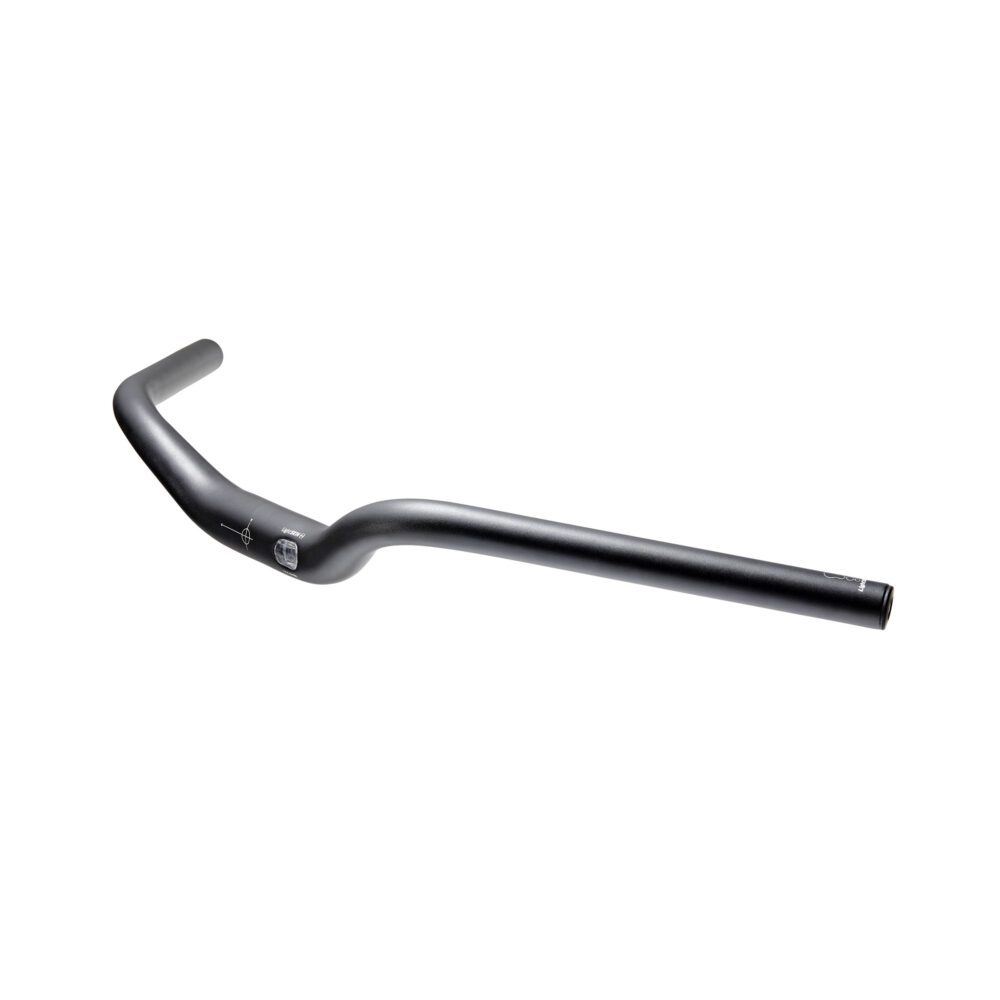

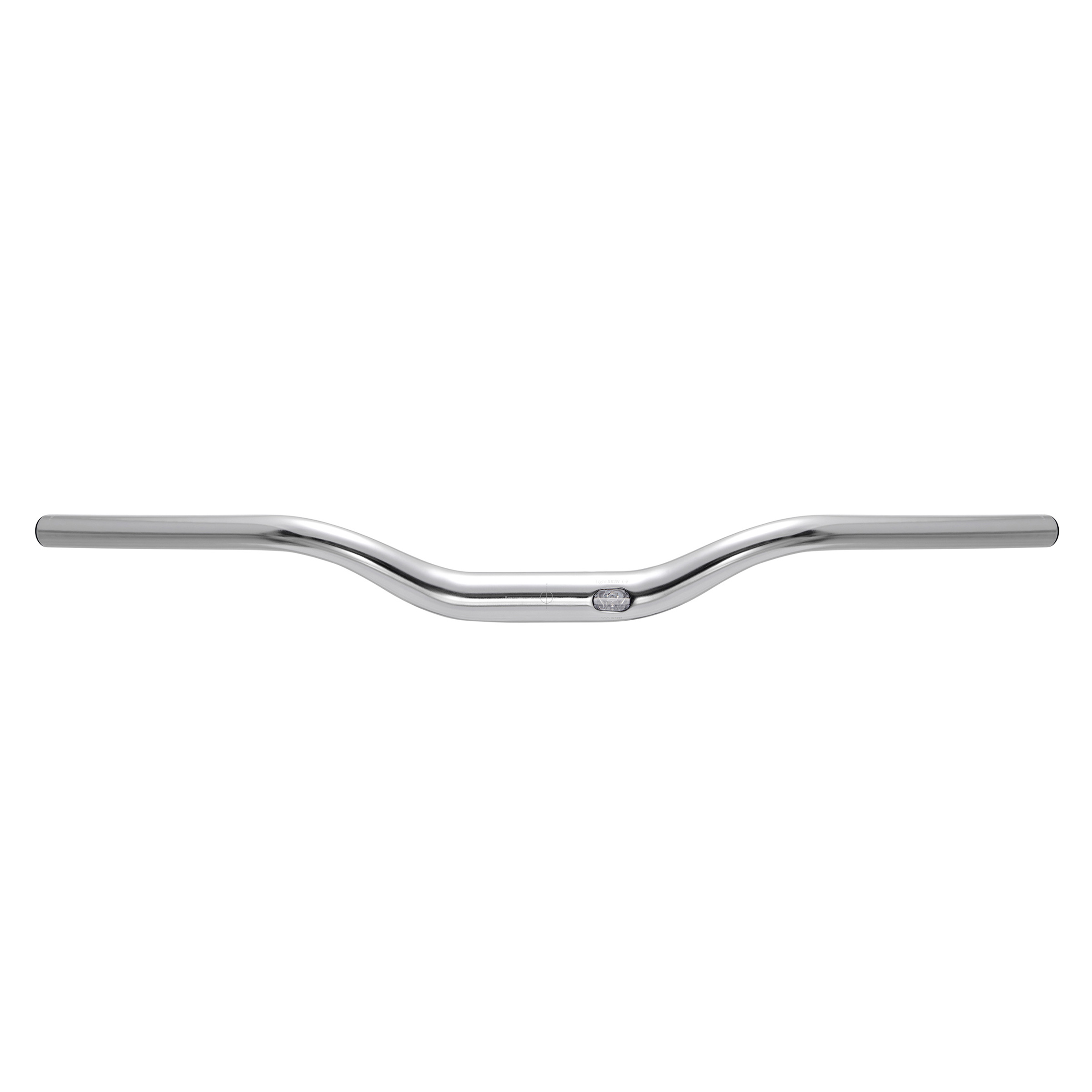

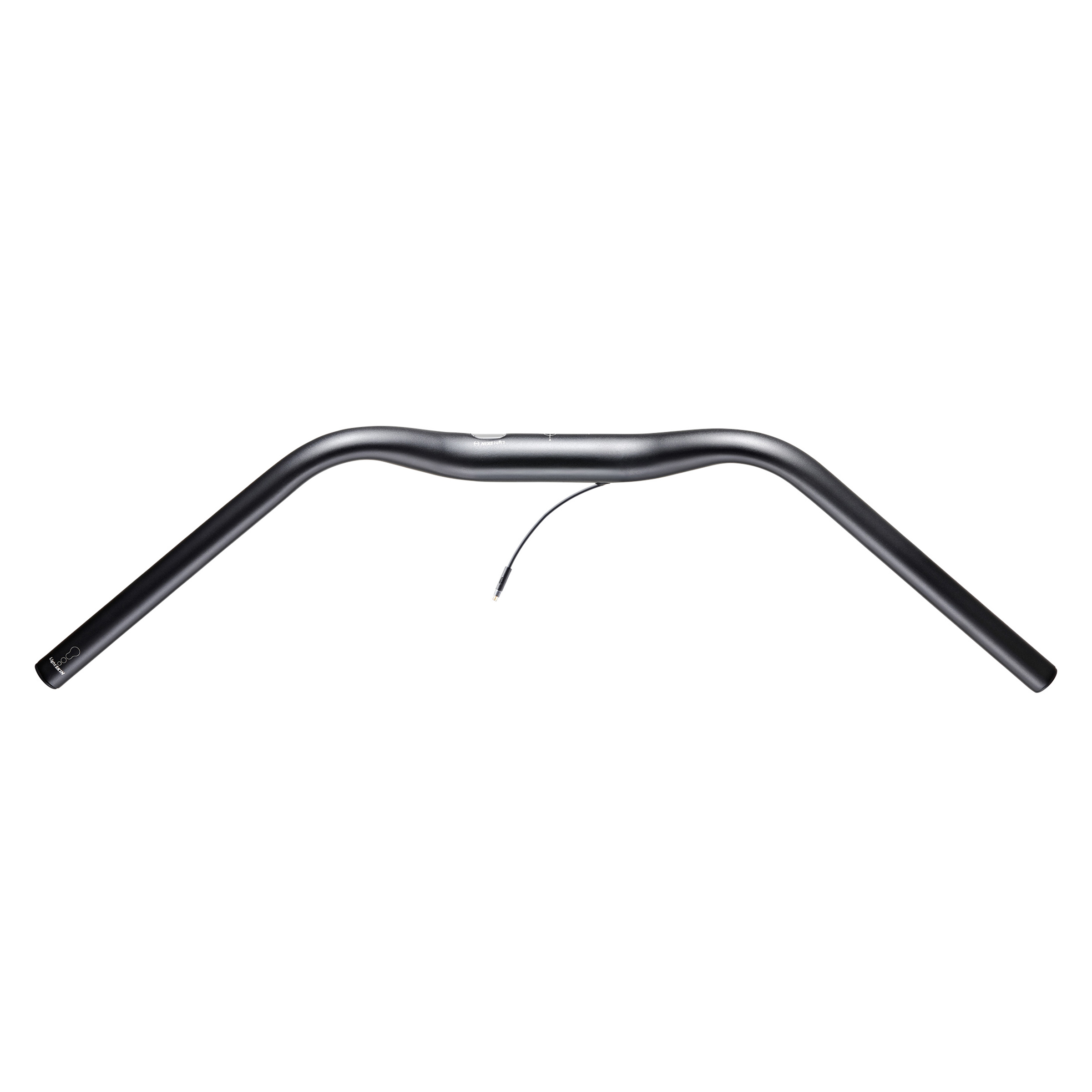

HANDLE BAR - H2E city
In the H2E version, the light is powered via a cable connected to an external power source (e-bike’s battery).
StVZO version available in Germany, light will be always on mode when turn on the light thru e-bike computer. Please purchase after checking the compatibility of the connector in the battery part of your electric bicycle. If you need an extension cable, please send us a message in the contact us window.
Features
The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.
| Diameter (㎜) | Center 31.8 / Grip 22.2 |
| Handlebar width (㎜) | 640 |
| Bar Type | Back sweep 38˚ , Up sweep 0˚ , Rise 40㎜ |
| Handlebar color and surface finish | Polished Silver / Matt Black |
| Handlebar material | Aluminum 6061 T6 |
ETC
| Handlebar test standard | EN 15194 |
| Approval Code | K 1721 |
| Compliant with standard or directive | CE, RoHS, StVZO §22a TA Nr.23(Headlights for bicycles), IPX4 |

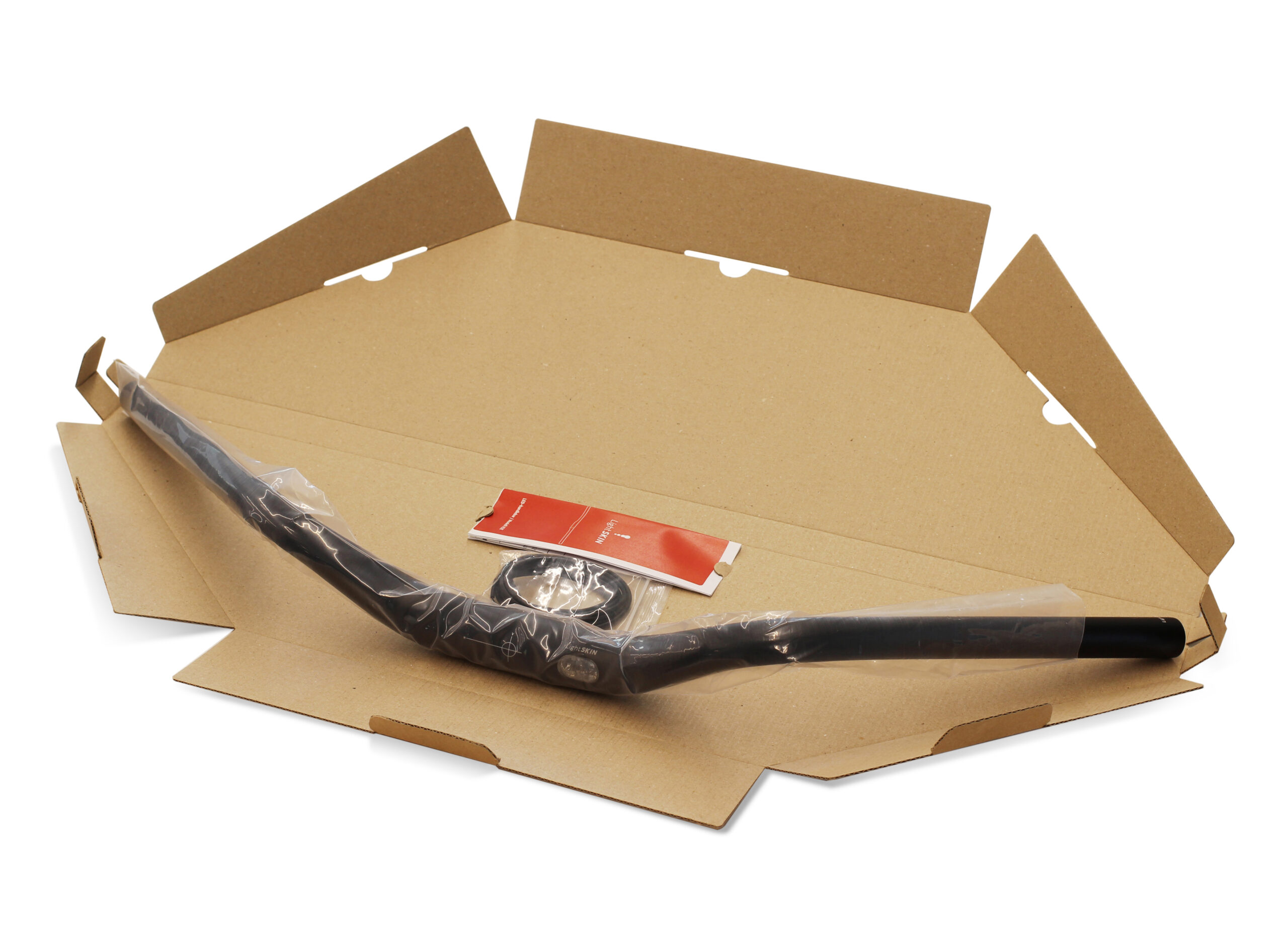

| Package Contents | Front light handlebar |
Function
The headlight is operated by the light switch of the e-bike system.
The headlight does not have a high beam or daytime light mode.
Light unit
| Light Module | LightSKIN H2 Lens |
| Luminous flux | 150lm |
| Power source | On-board battery of the e-bike |
| Nominal voltage | DC 6V (5V-24V) |
| Power consumption | 1.3W |
| Operating Temperature | Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C |
