HANDLE BAR - H2D wien
In the H2D version, the light is powered by a hub dynamo.
Simply connect the enclosed extension cable to the handlebar and hub dynamo.
Features
The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.
| Diameter (㎜) | Center 31.8 / Grip 22.2 |
| Handlebar width (㎜) | 640 / 680 |
| Bar Type | Back sweep 15˚ , Up sweep 0˚ , Rise 20㎜ |
| Handlebar color and surface finish | Polished Silver / Matt Black |
| Handlebar material | Aluminum 6061 T6 |
ETC
| Handlebar test standard | ISO 4210 Mountain, City |
| Approval Code | K 1721 |
| Compliant with standard or directive | CE, RoHS, StVZO §22a TA Nr.23(Headlights for bicycles), IPX4 |

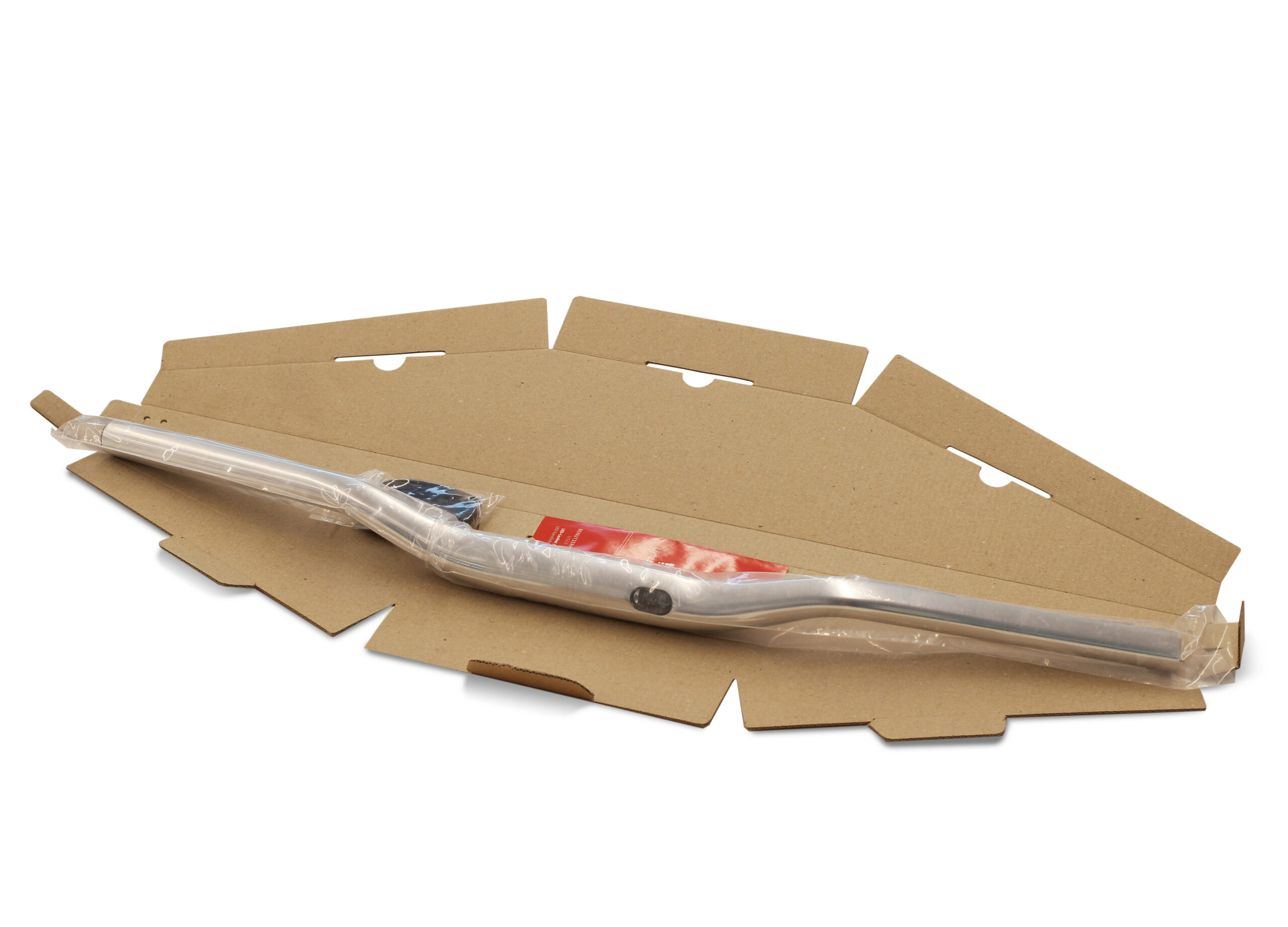

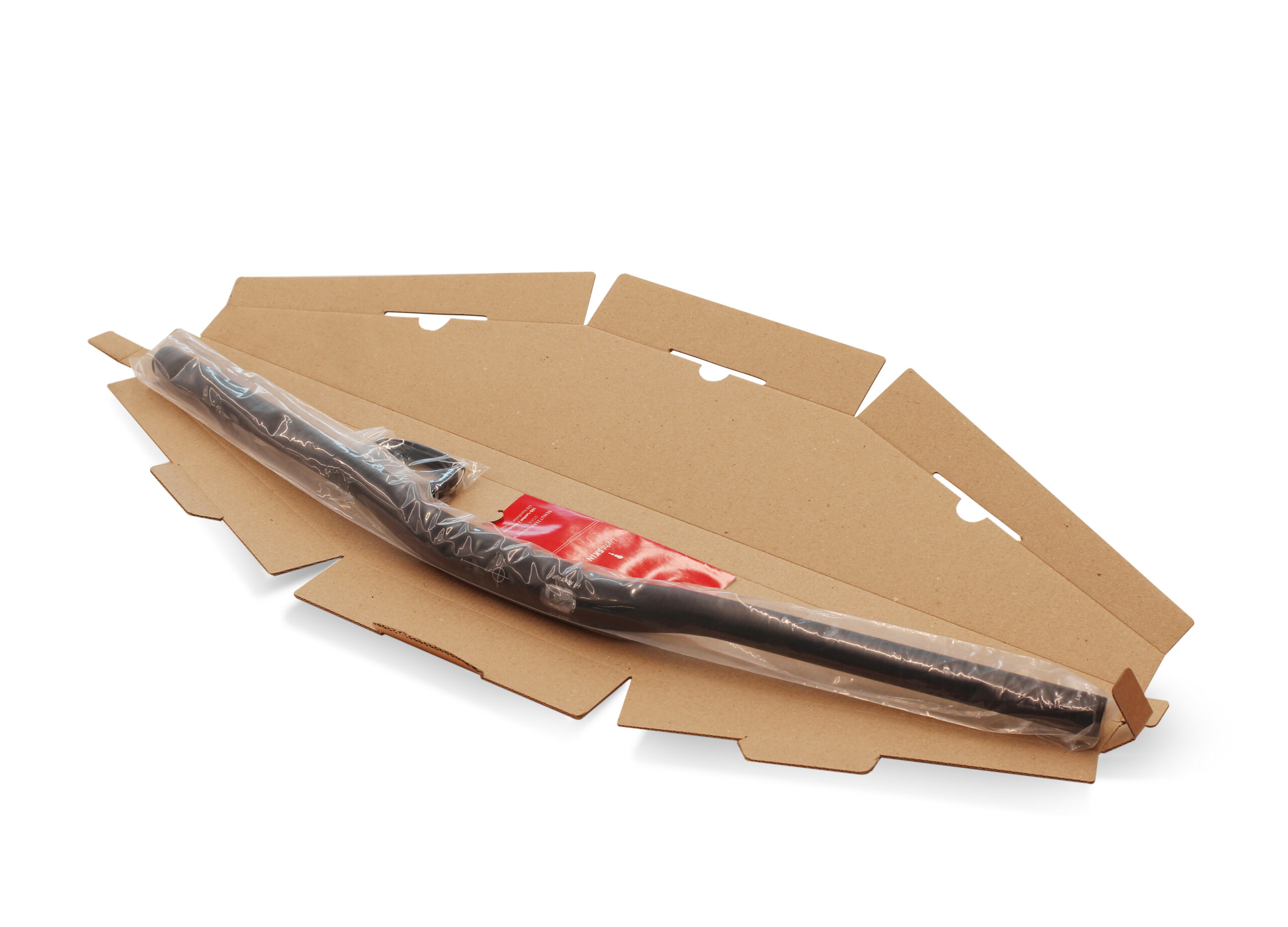

| Package Contents | Front light handlebar, Extension cable (800㎜) |
Function
Light unit
| Light Module | LightSKIN H2 Lens |
| Luminous flux | 150lm |
| Power source | AC 6V(3W) Bicycle Dynamo |
| Nominal voltage | AC 6V |
| Power consumption | 2.4W |
Precautions
| Operating Temperature | Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C |
Warranty
2 years from the date of purchase.
In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.
Waste Disposal
Old appliances and batteries must not be disposed of with normal household waste.
According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center
Shipping
Please be aware before order. The import tax will be charged to you separately. Taxes may vary depending on the country.
If you want to return or exchange, you will be charged a Fedex round-trip shipping fee. Prices are inclusive of basic international shipping.
Regions where additional shipping fee are generated will be charged at the payment window.
Returns and Exchanges
Returns : When returning the product, please contact the seller first to discuss the reason for return, delivery fee, shipping address, and etc. and then send the return product. Please send us unused products by prepaid, will refund you after confirming arrival.
Exchanges : Please send us unused items by prepaid, and send $60~70 re-delivery courier fee depending on your location. After receipt the goods and courier fee, we will replace it with another product.
