H2B

Name: H2B
SKU: 1143
Price: 130.00 USD
Availability: InStock

$130.00

충전식 배터리 type
StVZO 준수 (독일도로법)

Categories: Handlebars, StVZO

Description
Reviews (0)

HANDLE BAR - H2B

H2B는 분리할 수 없는 충전식 배터리가 내장되어 있습니다. 제공되는 2m 길이의 충전 케이블로 충전되는 제품입니다.
독일에서 사용할 수 있는 StVZO 버전은 연속 모드만 제공됩니다.

특징

핸들바에는 헤드라이트 렌즈가 합쳐진 구멍이 적어도 하나 이상 뚫리거나 가공된 구멍이 있습니다 버전에 따라 전원 공급 장치에 구멍이 추가될 수 있습니다. 또한 헤드라이트(LED, 렌즈 및 회로 기판)는 구성 요소로부터 보호되도록 핸들 바에 내장되어 있습니다. 핸들 바는 물이 들어가지 않도록 밀봉되어 있습니다.

지름 (㎜)	Center 31.8 / Grip 22.2
핸들바 폭 (㎜)	620 / 640 / 660 / 680 / 700
핸들바 Type	Flat, Back sweep 6˚ , Up sweep 0˚ , Rise ±5㎜
색상 및 표면 마감	Polished Silver / Matt Black
재질	알루미늄 6061 T6

ETC

핸들바 시험 규격	ISO 4210 Mountain, City
승인코드	K 1721
Compliant with standard or directive	CE, RoHS, UN3481, StVZO §22a TA Nr.23 (Headlights for bicycles), IPX4

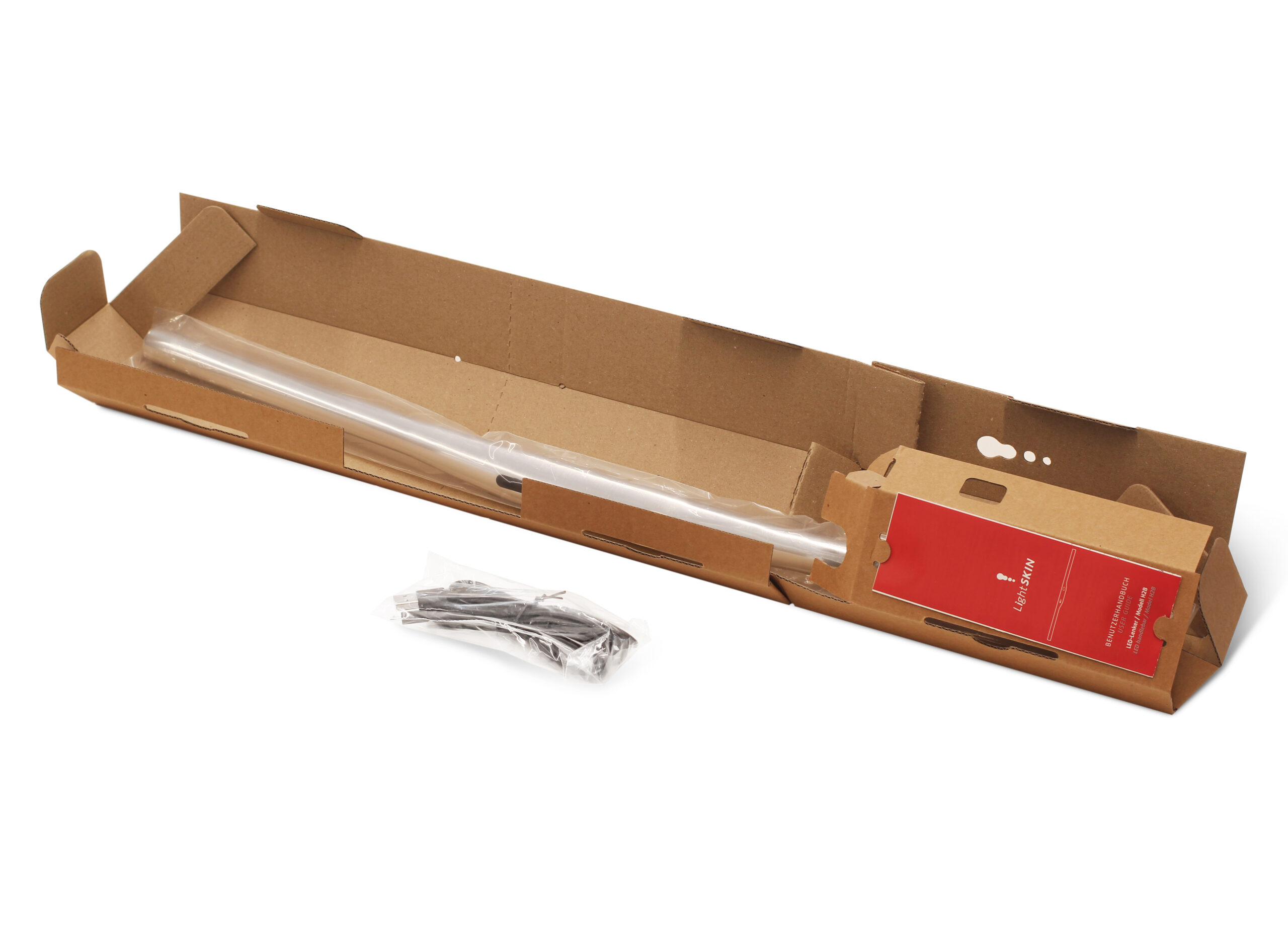

제품 구성	H241 핸들바 1개, USB charge cable (200cm) 1개

기능

헤드라이트는 핸들바 전면에 있는 버튼으로 작동됩니다.

Light modes : Off → on (extra bright) → on (bright) → Off

Light unit

Light Module	LightSKIN H2 Lens
Luminous flux	150lm
전원공급	Lithium-polymer battery 3.7V, 2000mAh, 8018120 with protection.
조명 지속 시간(완충 배터리)	Extra bright : 4시간 Bright : 6시간
충전소요시간	5시간

MICRO USB 2.0 CHARGING

완충까지 약 4시간에서 5시간이 걸립니다. 충전 중에는 버튼 캡이 빨간색으로 깜박입니다. 깜박임이 멈추고 배터리가 완전히 충전되면 빨간색 표시등이 계속 켜집니다. 배터리가 완전히 충전되면 USB 포트에서 케이블을 제거합니다. 충전 중에 제품이 지나치게 뜨거워지면 충전 프로세스를 중지합니다. USB 포트가 젖었을 때는 절대 배터리를 충전하지 마십시오. 완전 충전 및 방전 사이클은 500회입니다.

충전상태표시

배터리 부족 경고: 마이크로 USB 포트에 파란색 LED로 표시됩니다. 이 LED가 켜진 후 배터리는 규정에 따라 1시간 더 LED에 전원을 공급할 충분한 용량을 가지고 있습니다. 마이크로 USB 포트는 반투명한 실리콘 캡으로 커버되어 있어 파란색 LED가 보이고, 포트가 기후 요소로부터 보호됩니다.

장애 발생 시 취해야 할 조치	헤드라이트가 고장 나면 즉시 교체해야 합니다.
USB 포트	충전 케이블을 과도하게 잡아당기지 마십시오. 제공된 USB 케이블을 사용하여 배터리를 올바르게 충전하는 것이 좋습니다. USB 커넥터가 열에 노출되면 원래의 형태가 없어질 수 있습니다.

Precautions

Operating Temperature

Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C

Warranty

2 years from the date of purchase. In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.

Waste Disposal

Old appliances and batteries must not be disposed of with normal household waste. According to EU Directive 2012/19/EU, the product must be disposed of properly at the end of its service life. Return the old device to a collection point for electronic waste or a recycling center

Shipping

Please be aware before order. The import tax will be charged to you separately. Taxes may vary depending on the country.

If you want to return or exchange, you will be charged a Fedex round-trip shipping fee. Prices are inclusive of basic international shipping.

Regions where additional shipping fee are generated will be charged at the payment window.

Returns and Exchanges

Returns : When returning the product, please contact the seller first to discuss the reason for return, delivery fee, shipping address, and etc. and then send the return product. Please send us unused products by prepaid, will refund you after confirming arrival. Exchanges : Please send us unused items by prepaid, and send $60~70 re-delivery courier fee depending on your location. After receipt the goods and courier fee, we will replace it with another product.

Reviews

There are no reviews yet.

Be the first to review “H2B” Cancel reply

You must be logged in to post a review.

H2B

$130.00

Rechargeable battery type
Compliant with StVZO (German Road legal)

Categories: Handle bars, StVZO

Description
Reviews (0)

HANDLE BAR - H2B

The H2B is a powered by a built in, non-removable, rechargeable battery. This is a product that is charged with the included 2m long charging cable.
StVZO version available in Germany, only continuous mode is provided.

Features

The handlebar has at least one drilled or milled out hole in which the headlight lens is integrated. Depending on the version, there may be an additional hole for the power supply. In addition, the headlight (LED, lens and circuit board) is built into the handlebar in such a way that it is protected from the elements. The handlebar is sealed so that water cannot enter.

Diameter (㎜)	Center 31.8 / Grip 22.2
Handlebar width (㎜)	620 / 640 / 660 / 680 / 700
Bar Type	Flat, Back sweep 6˚ , Up sweep 0˚ , Rise ±5㎜
Handlebar color and surface finish	Polished Silver / Matt Black
Handlebar material	Aluminum 6061 T6

ETC

Handlebar test standard	ISO 4210 Mountain, City
Approval Code	K 1721
Compliant with standard or directive	CE, RoHS, UN3481, StVZO §22a TA Nr.23 (Headlights for bicycles), IPX4

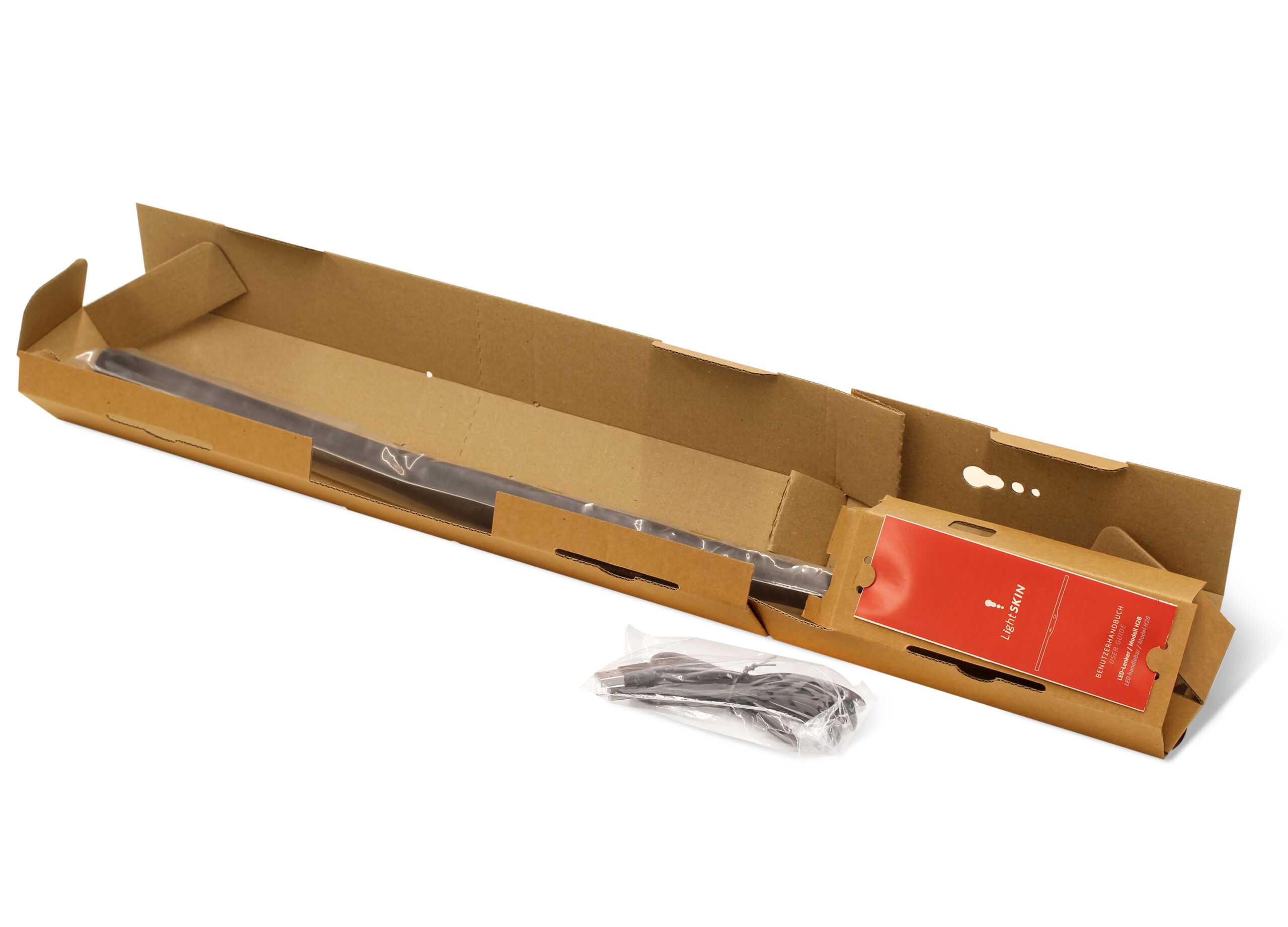

Package Contents	Front light handlebar, USB charge cable (200cm)

Function

The headlight is operated by a button on the front side of the handlebar.

Light modes : Off → on (extra bright) → on (bright) → Off

Light unit

Light Module	LightSKIN H2 Lens
Luminous flux	150lm
Power source	Lithium-polymer battery 3.7V, 2000mAh, 8018120 with protection.
Light Duration (fully charged battery)	Extra bright: 4h Bright: 6h
Charging Time	5h

MICRO USB 2.0 CHARGING

In order to reach the full load capacity, it takes between 4 and 5 hours. During charging, the button cap flashes in RED. The flashing stops, changes to continuous red light on when the battery is completely charged. When the battery is fully charged, remove the cable from the USB port. Should the product become excessively hot during charging, stop the charging process. Never charge the battery when the USB port is wet. Full charge and discharge cycles 500.

Charge state

Low battery alert : Indicated by a blue LED integrated into the micro-USB socket.

As soon as this LED lights up, the battery still has enough capacity to power the LEDs for 1 more hour in accordance with the regulation. The micro-USB port is covered with a semi-transparent silicone cap so that the blue LED is visible and the port protected from the elements.

Steps to take inthe event of a failure	If the headlight fails, it must be immediately replaced.
USB port	Do not pull on the charging cable excessively. We recommend using the supplied USB cable to ensure proper battery charging. If the USB connector is exposed to heat, it may lose its shape.

Precautions

Operating Temperature

Min : -15° C Max : 45° C Optimum storage temperature : 20-25°C

Warranty

2 years from the date of purchase. In case of warranty, (replacement or repair), please contact the distributor through whom the product was purchased.

Waste Disposal

Shipping

Please be aware before order. The import tax will be charged to you separately. Taxes may vary depending on the country.

If you want to return or exchange, you will be charged a Fedex round-trip shipping fee. Prices are inclusive of basic international shipping.

Regions where additional shipping fee are generated will be charged at the payment window.

Returns and Exchanges

Reviews

There are no reviews yet.

Be the first to review “H2B” Cancel reply

You must be logged in to post a review.
